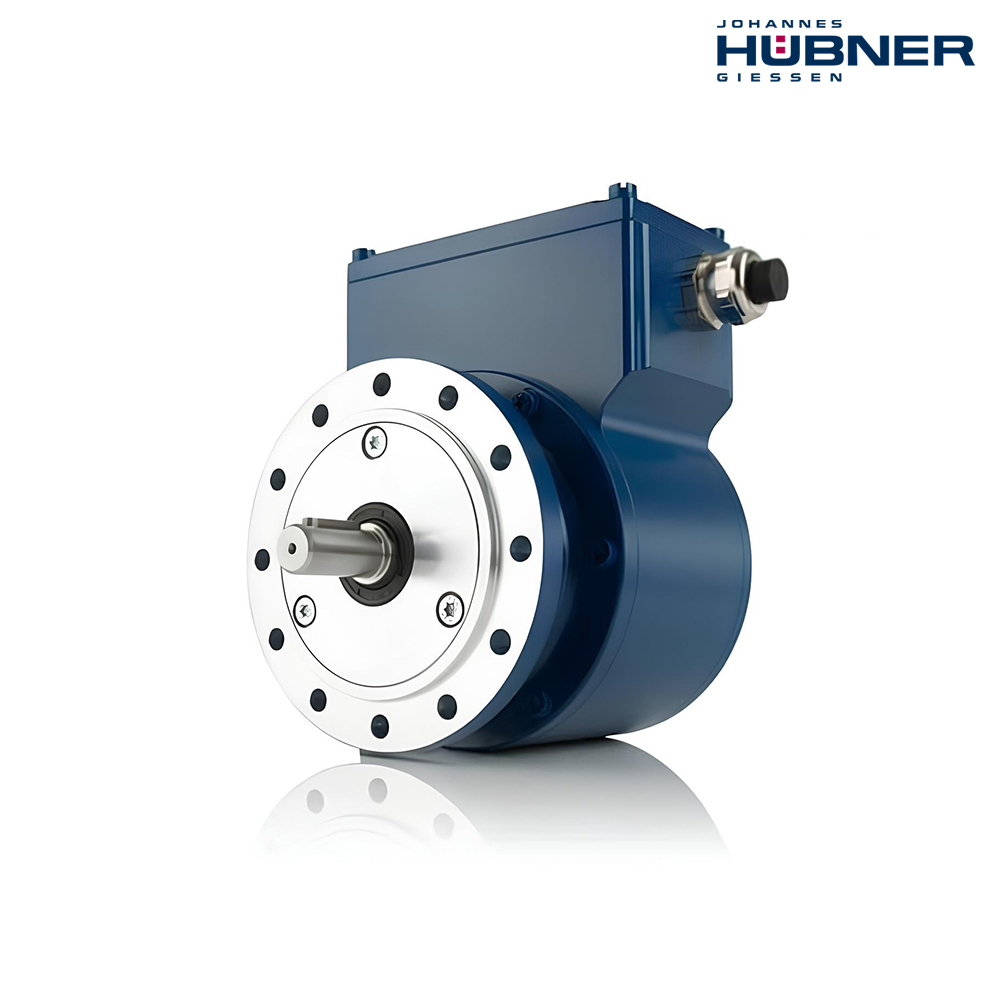

Extremely robust singleturn absolute encoder with a reinforced shaft and ball bearings offering a 40% higher load rating.
Ideally suited for loopers in hot rolling mills and other demanding industrial applications.
Available with solid shafts up to Ø 14 mm.
Resolution: 16-bit singleturn.
Supports Parallel and SSI interfaces.
Degree of protection up to IP66 / IP67 with an operating temperature range from -25 °C to +100 °C.
Also available with an incremental output option.
| Technical Data | |
| Attribute | Value |
| Supply voltage | 12–30 VDC |
| Resolution | Singleturn max. 16 bit (65,536 steps per rotation) |
| Number of interfaces | 1 |
| Interface / Product name | SSI (Gray; Binary; Incremental) | ALS 40 HTL, TTL | FGL 40 |
| Maximum Speed / Frequency | Solid shaft: up to 4000 rpm |

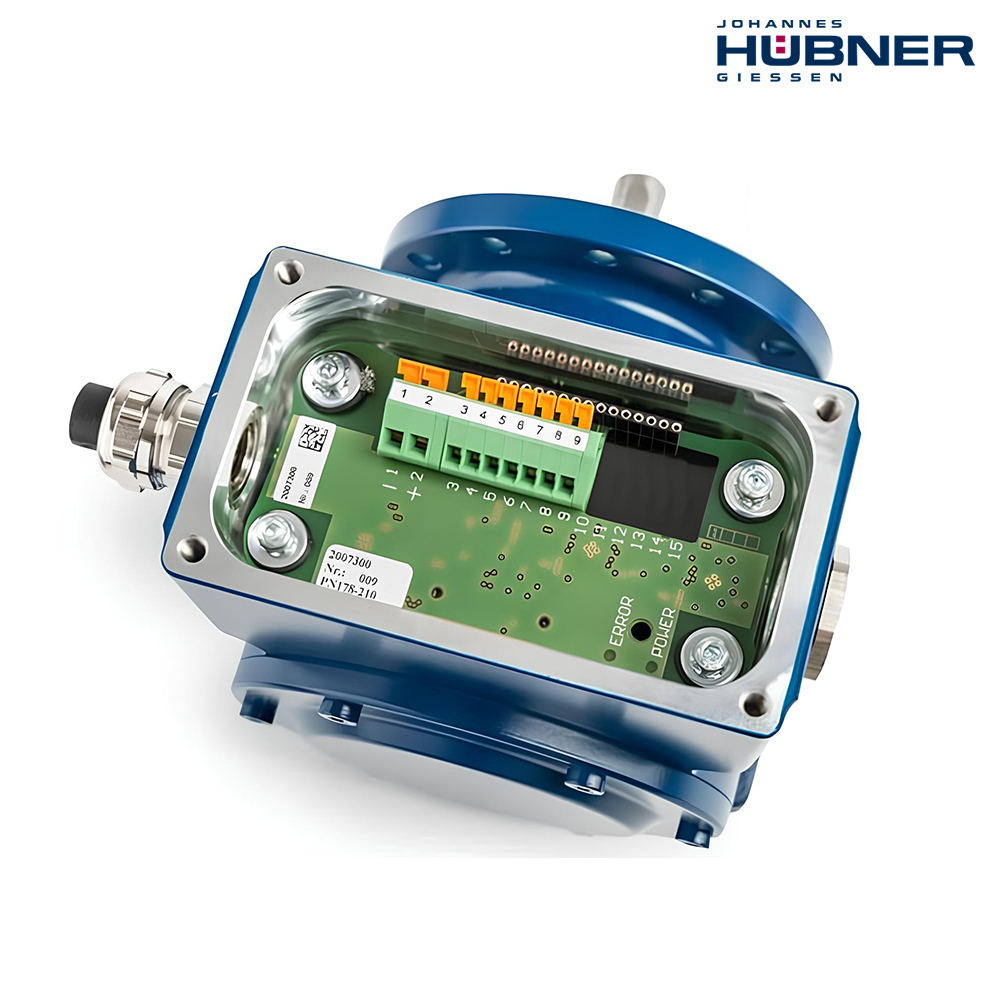

| Electrical connection | Terminal strip in a terminal box Fixed cable |

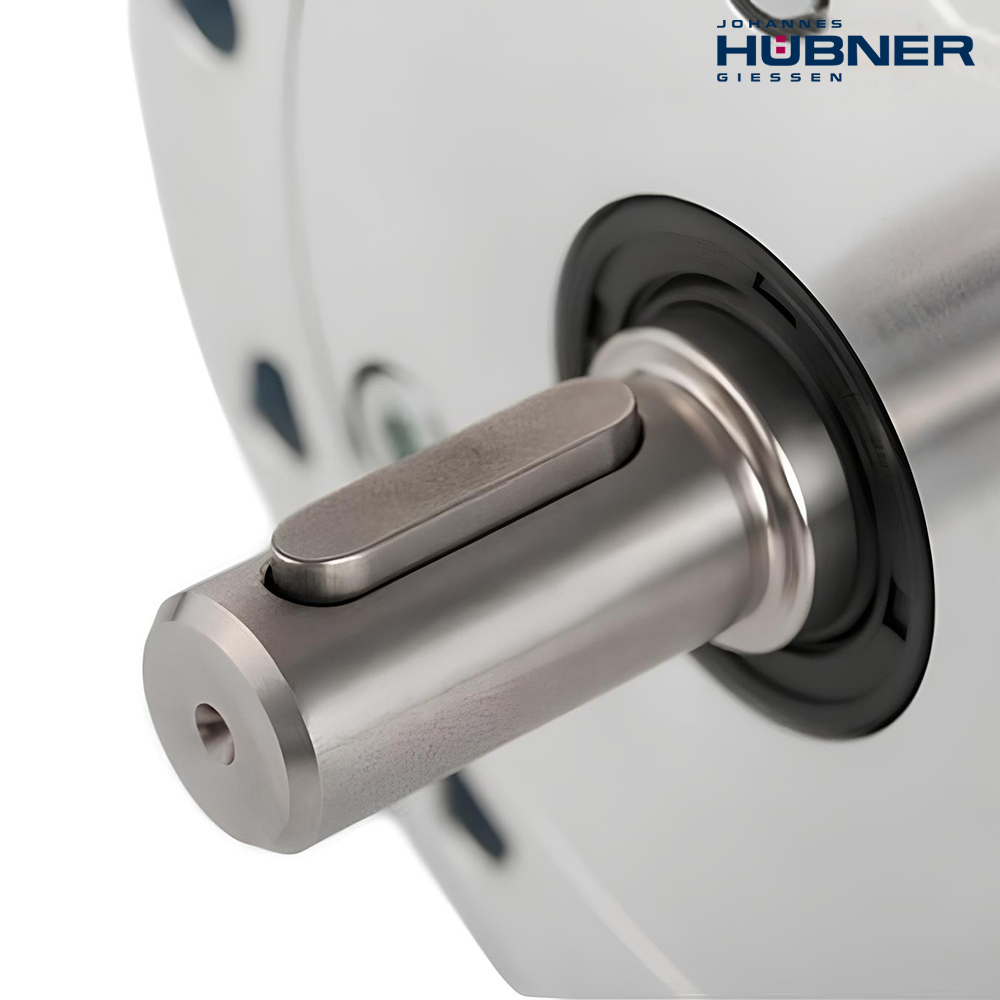

| Type of construction | Solid shaft (B5, B35): Ø 11 mm, Ø 14 mm with feather key |
| Device temperature range | -25 °C to +100 °C |
| Degree of protection | IP66 / IP67 |
| Weight | approx. 3.5 kg |
| Device options / Function | FGL 40: Incremental signal (HTL/TTL) instead of absolute signal Preset function (preset 1000) Ball bearings with 40% higher load rating, strengthened shaft |
| Certificates / Approvals | UL/CSA |
