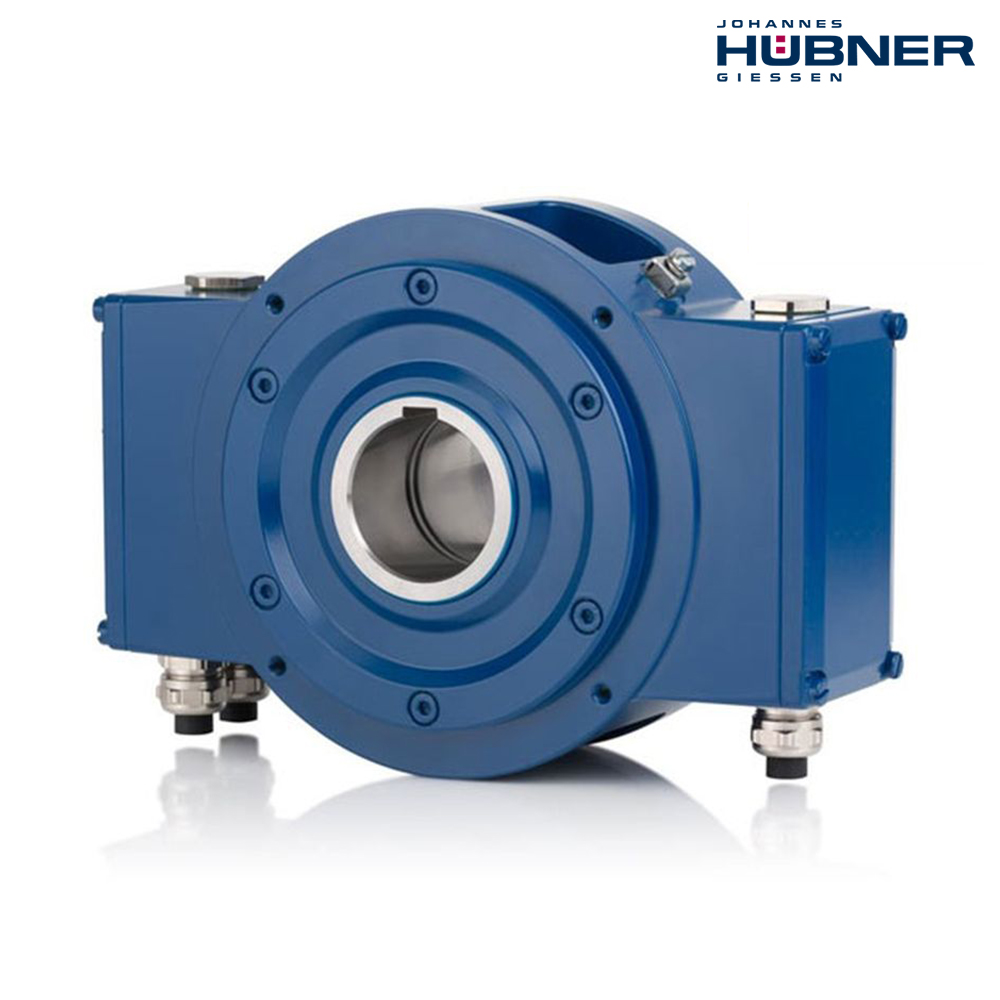

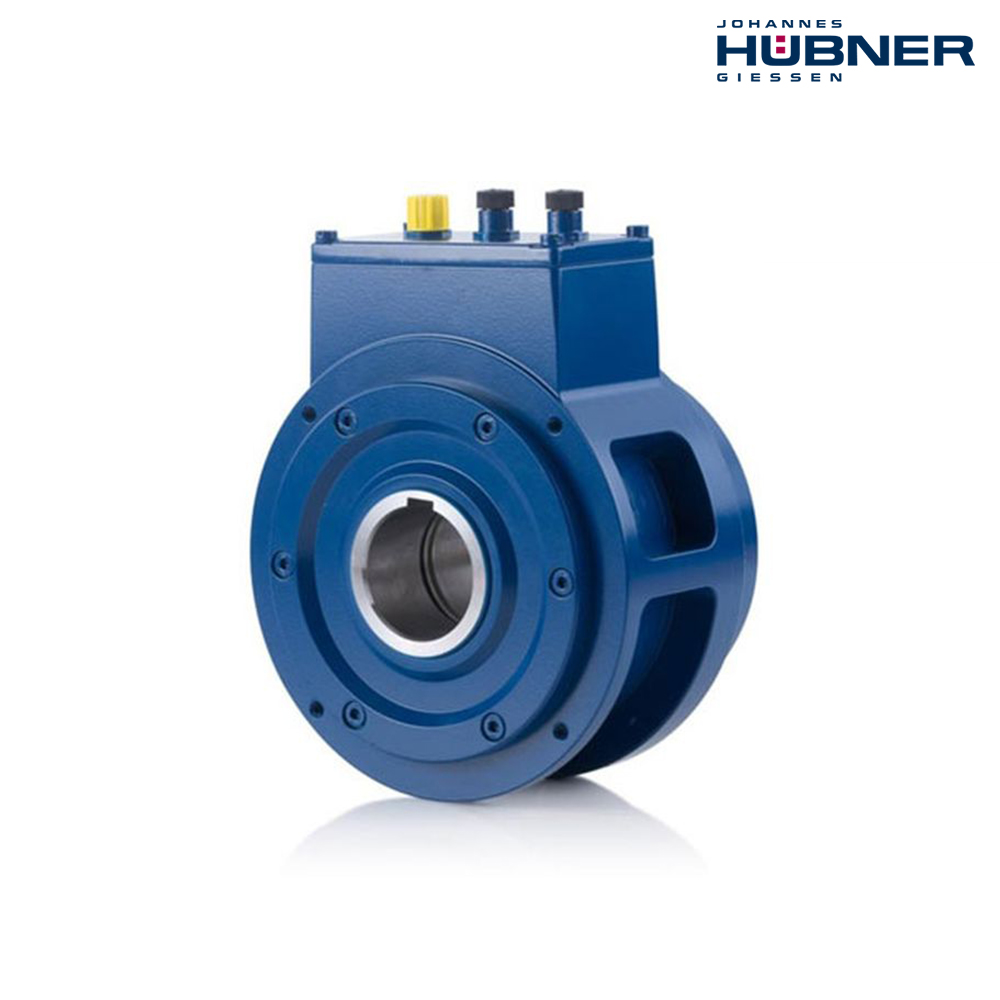

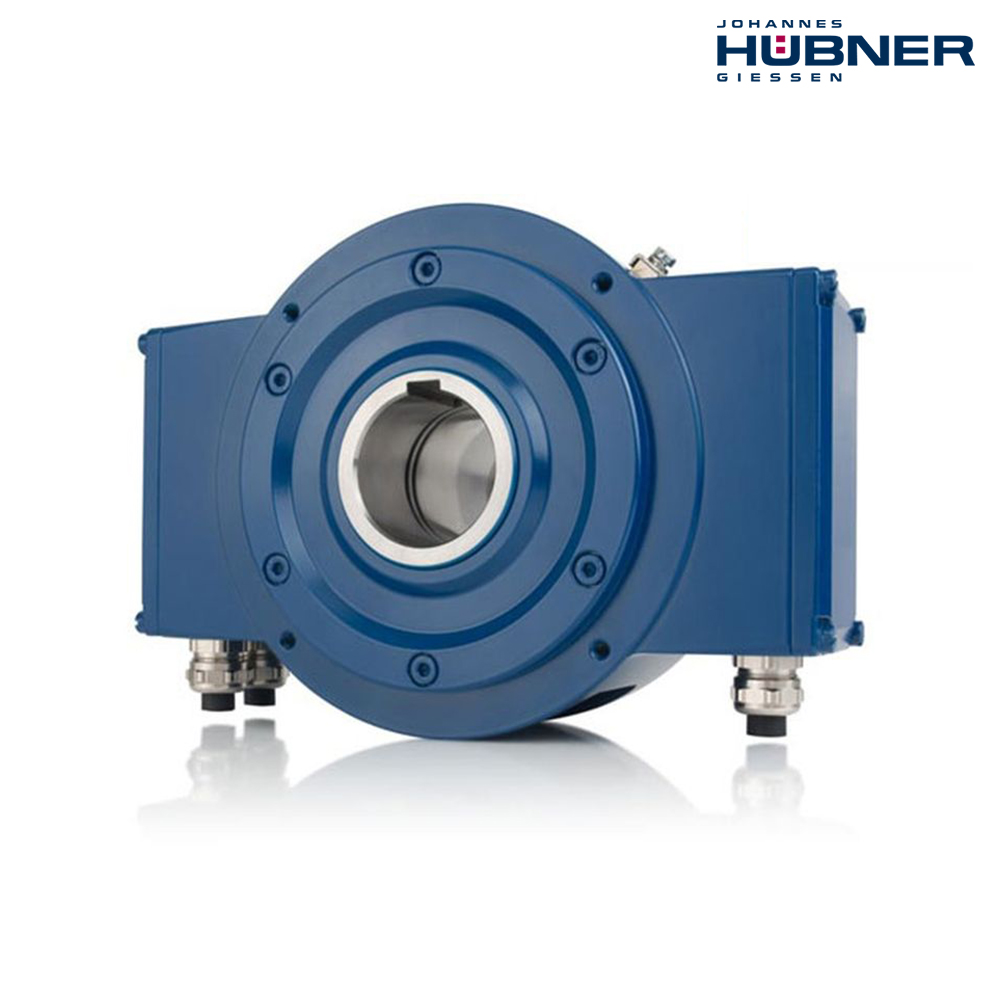

Extremely robust optical absolute encoders designed for larger shaft diameters.
Ideally suited for heavy-duty applications on main drives.
Available with hollow shafts up to Ø 50 mm.
Resolution: 16-bit singleturn.
Supports Parallel, SSI, and EtherCAT communication interfaces.
Degree of protection up to IP55 with an operating temperature range from -25 °C to +85 °C.
Optional features include an additional incremental output and support for up to two attachments.
| Technical Data | |
| Attribute | Value |
| Supply voltage | 12–30 VDC |
| Resolution | Singleturn max. 16 bit (65,536 steps per rotation) |
| Number of interfaces | 1 or 2 |
| Interface / Product name | EtherCAT | ASEH 60 SSI | ASSH 60 Parallel | ASPAH 60 |
| Maximum Speed / Frequency | Hollow shaft: up to 4000 rpm |
| Electrical connection | Terminal strip in a terminal box Fixed cable 12-pole round connector Burndy 12-pole round connector M23 15-pole industrial connector |
| Type of construction | Hollow shaft: Ø max. 50 mm with keyway |
| Device temperature range | -25 °C to +85 °C |
| Degree of protection | up to IP55 |
| Weight | approx. 7 kg |
| Device options / Function | Additional single incremental output in second terminal box Additional double incremental output with reference pulse (HTL only) in second terminal box |
| Mechanical options | B14 flange for further attachments Torque bracket (on request) |
| Certificates / Approvals | UL/CSA |
