Extremely robust and durable incremental rotary encoders
For standard, main and auxiliary drives, e.g. in steel and rolling mills, mining, ports and cranes
Hollow shafts up to Ø 25 mm, solid shafts up to Ø 14 mm (flange or foot mounting)
Up to 100,000 pulses HTL / TTL, temperature range from -40 to +100 °C
Degree of protection up to IP66 / IP67, shaft isolation up to 1 kV
High flexibility due to a wide variety of device and signal options
Technical Data |
|
| Attribute | Value |
| Supply voltage | 12-30 VDC |
| Signal amplitude | HTL or TTL |
| Number of pulses | 1 – 100000 |
| Output signals | A (0°), B (90°), Z (marker pulse), status and inverted signals |
| Maximum Speed / Frequency | Solid shaft: up to 7000 rpm / 200 kHz Hollow shaft: up to 6000 rpm / 200 kHz |
| Electrical connection | Terminal strip in a terminal box Fixed cable Round connector 12-pin (Burndy type) Industrial plug 15-pin M23 plug 12-pin ITT Cannon plug 10-pin |

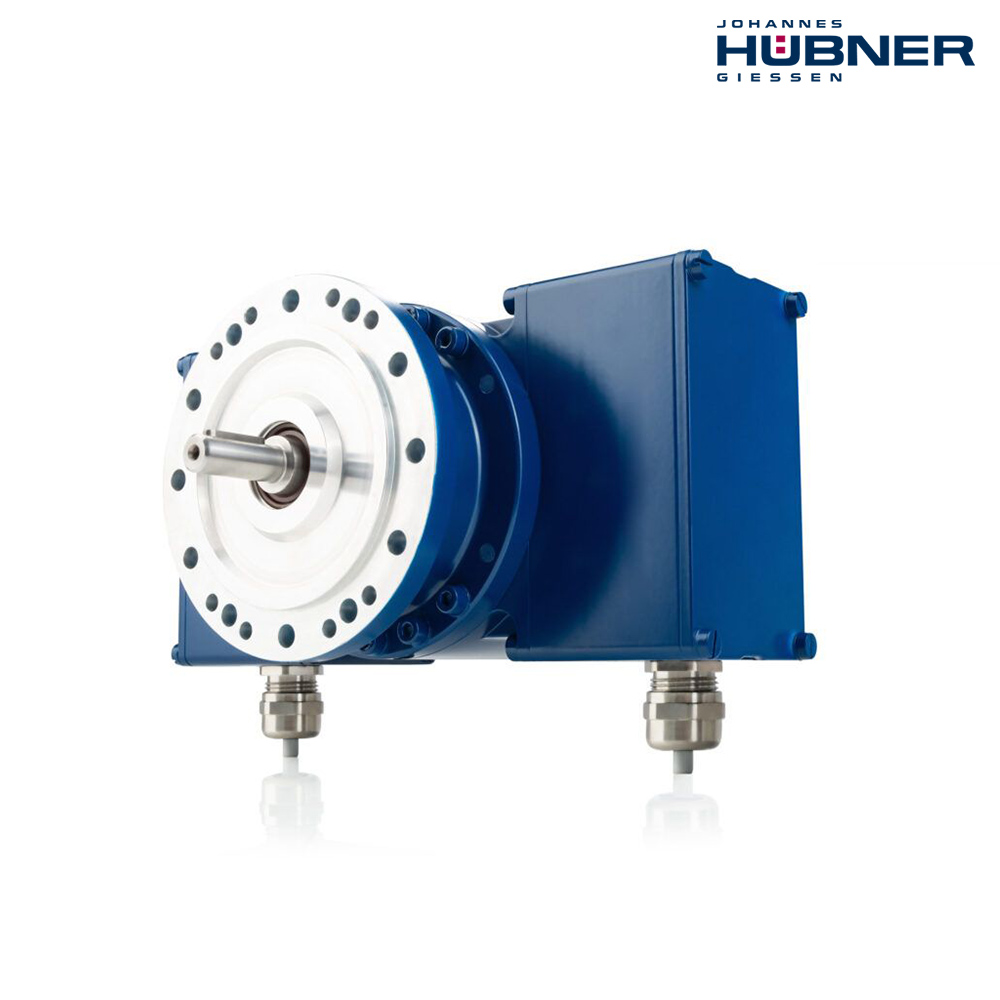

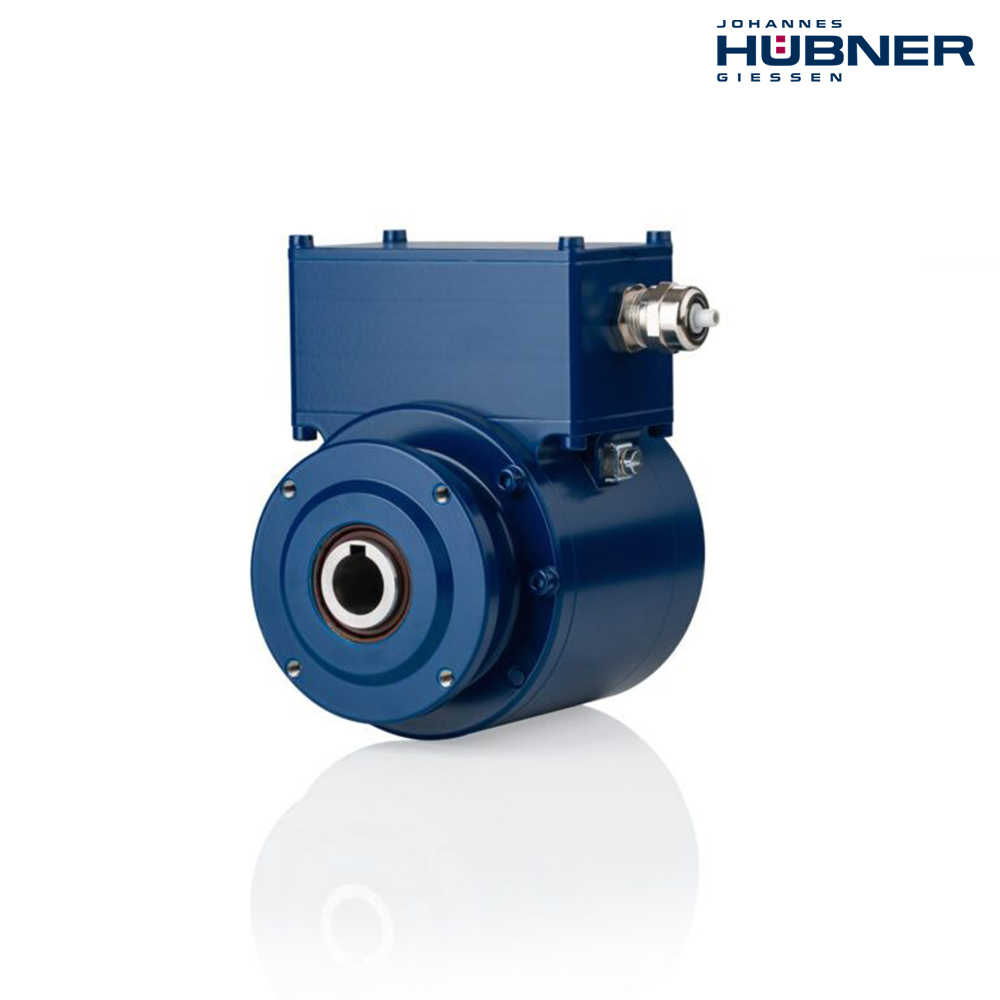

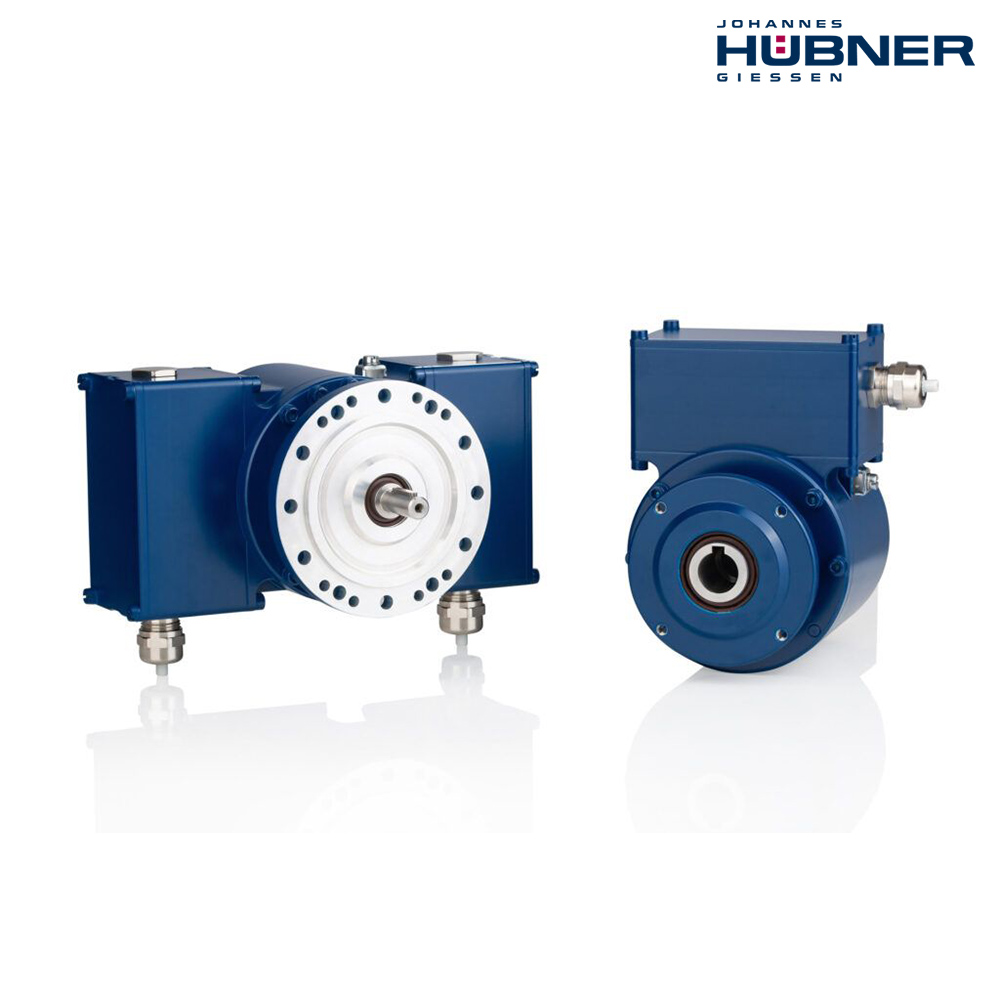

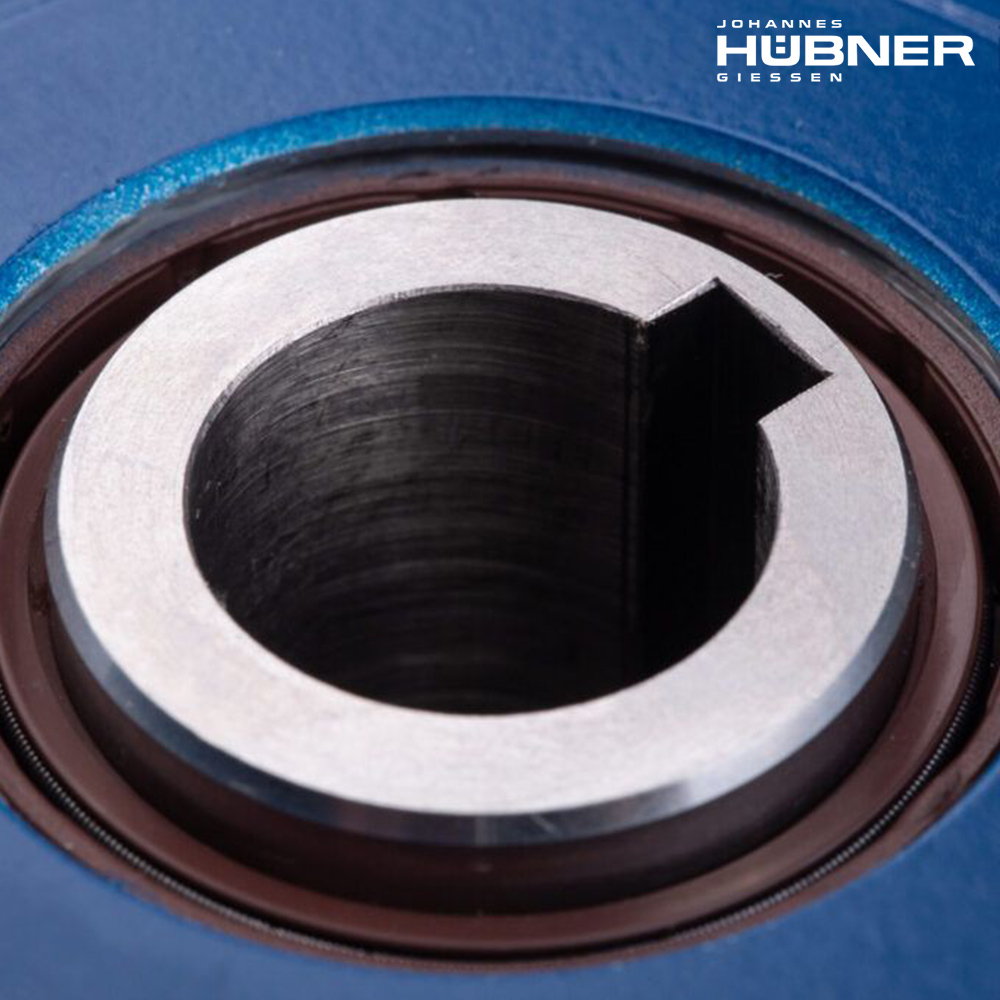

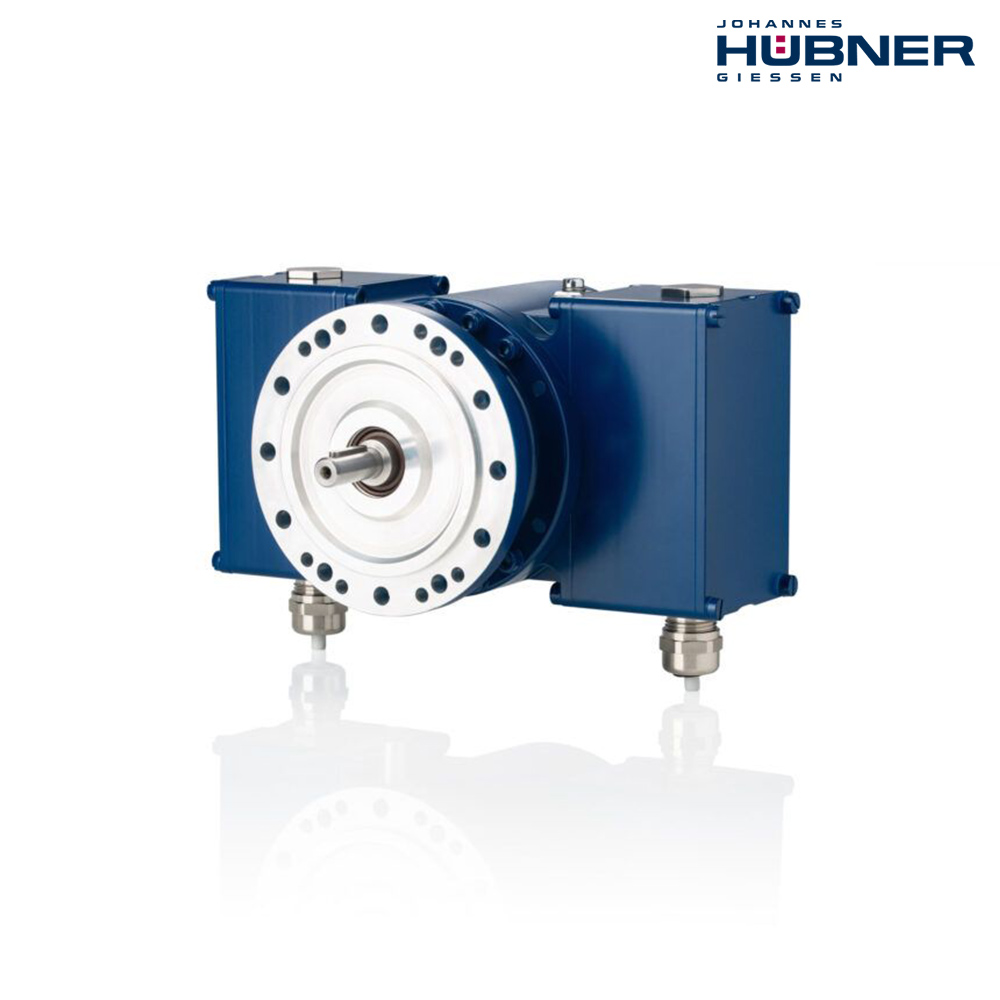

| Type of construction | Solid shaft (B5, B35): Ø 11 mm, Ø 14 mm with feather key Through hollow shaft: Ø 16 mm, Ø 20 mm with feather keyway; Ø 16 mm, Ø 25 mm with clamp |
| Device temperature range | -40 °C to +85 °C Optional: -40 °C to +100 °C |
| Degree of protection | up to IP66 / IP67 |
| Shock resistance | up to 200 g |
| Vibration resistance | up to 20 g |
| Weight | approx. 3.0 – 4.4 kg |
| Device options / Function | Second incremental output (redundant or non-redundant) J50: Accuracy class 50" |
| Mechanical options | Second shaft end with B14 flange for attachments (solid shaft design type only) Additional foot (solid shaft design type only) MI: Saliferous environment MS: Wet areas in rolling mills Hollow shaft devices: Torque bracket (on request) |
| Certificates / Approvals | CE, UKCA |
