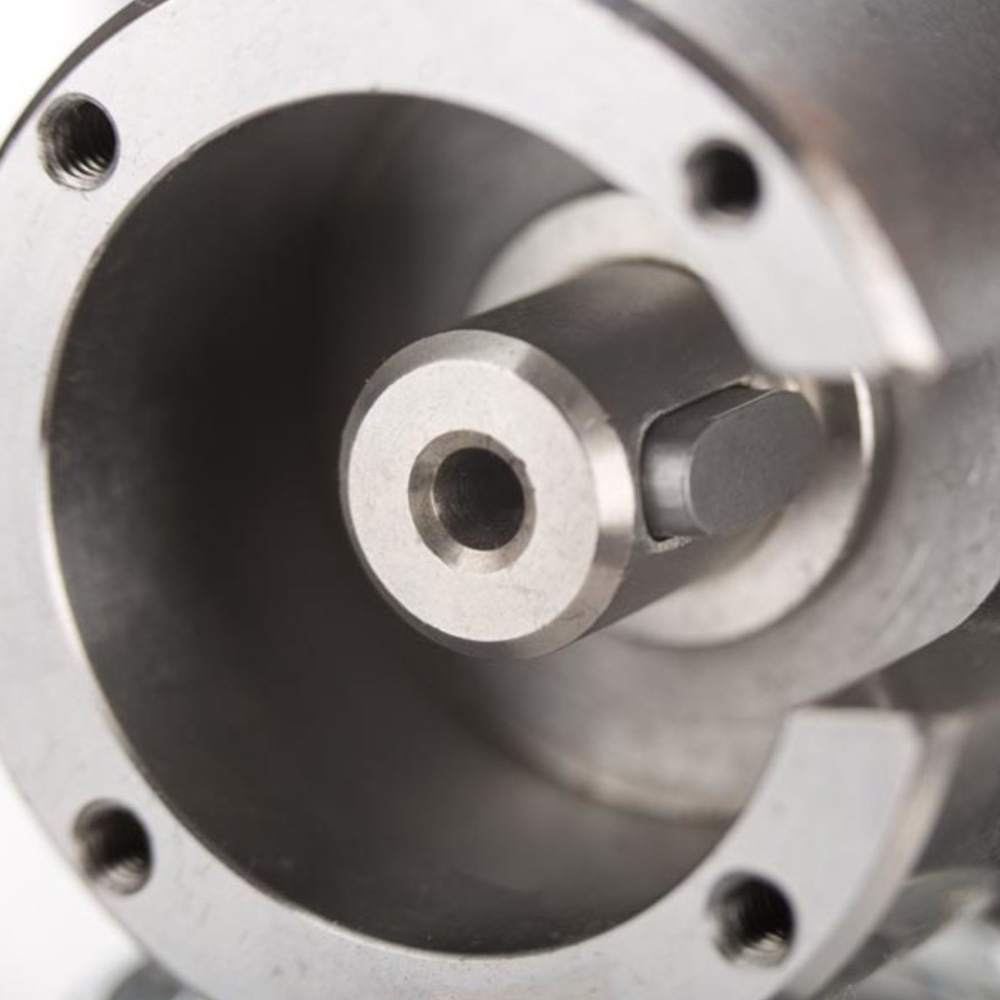

Attachment to shaft without centering thread
Ideal for retrofitting and replacing other shafts
Adapter shaft easily adjusted
Options: Certified safety component to DIN EN ISO 13849-2 (PL e) and isolated version
| Technical Data | |
| Attribute | Value |
| Product usage |
Mounting hollow shaft encoders to shaft with large diameter : - External centering customer shaft (flange-adapter shaft with internal centering) - Internal centering customer shaft (flange-adapter shaft with external centering) Possible for all encoder installation positions (for example, shaft facing up/down). |
| Mounting type | Following inspection/agreement :
- External centering customer shaft: Centering diameter approx. Ø 28-350 mm (encoder series 4/40/41) - Internal centering customer shaft: Centering diameter approx. Ø 30-290 mm (encoder series 4/40/41) - External/internal centering customer shaft: Centering diameter approx. Ø 50-200 mm (encoder series 5/6/60) - Custom design customer shaft possible up to centering diameter Ø 500 mm or as per customer preference |
| Mounting accuracy | Calculated individually case-by-case /design as per consultation |
| Maximum rotation | Calculated individually case-by-case /design as per consultation |
| Temperature range | Calculated individually case-by-case /design as per consultation |
| Shock resistance | Calculated individually case-by-case /design as per consultation |
| Vibration resistance | Calculated individually case-by-case /design as per consultation |
| Insulated against currents | Yes (optional) |
| Mechanical options | |
| Special features and certificates | Optional : Designed as safety component with fault exclusion to DIN EN ISO 13849-2 (up to PLe), with CE declaration of conformity |
| The rugged solution for shafts without centering thread | |
| Flange adapter shafts facilitate the convenient, simple and stable attachment of hollow shaft encoders to large shafts without a centering thread. Depending on the on-site situation they are attached to the front face of the application shaft with external centering or internal centering; consequently, they are ideal as retrofitting and replacement solutions. If required, they are also available as certified safety components with fault exclusion to DIN EN ISO 13849-2 (PL e) and as an isolated version to shield against shaft currents. | |
