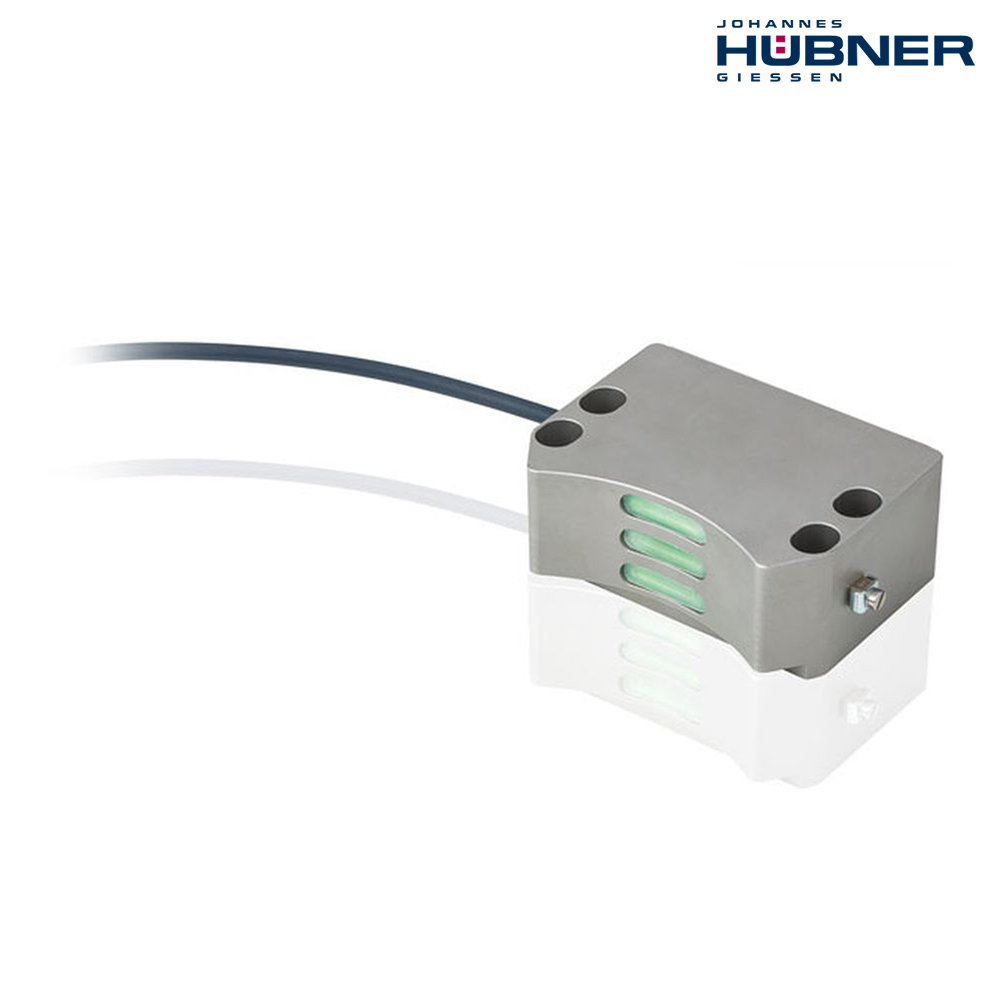

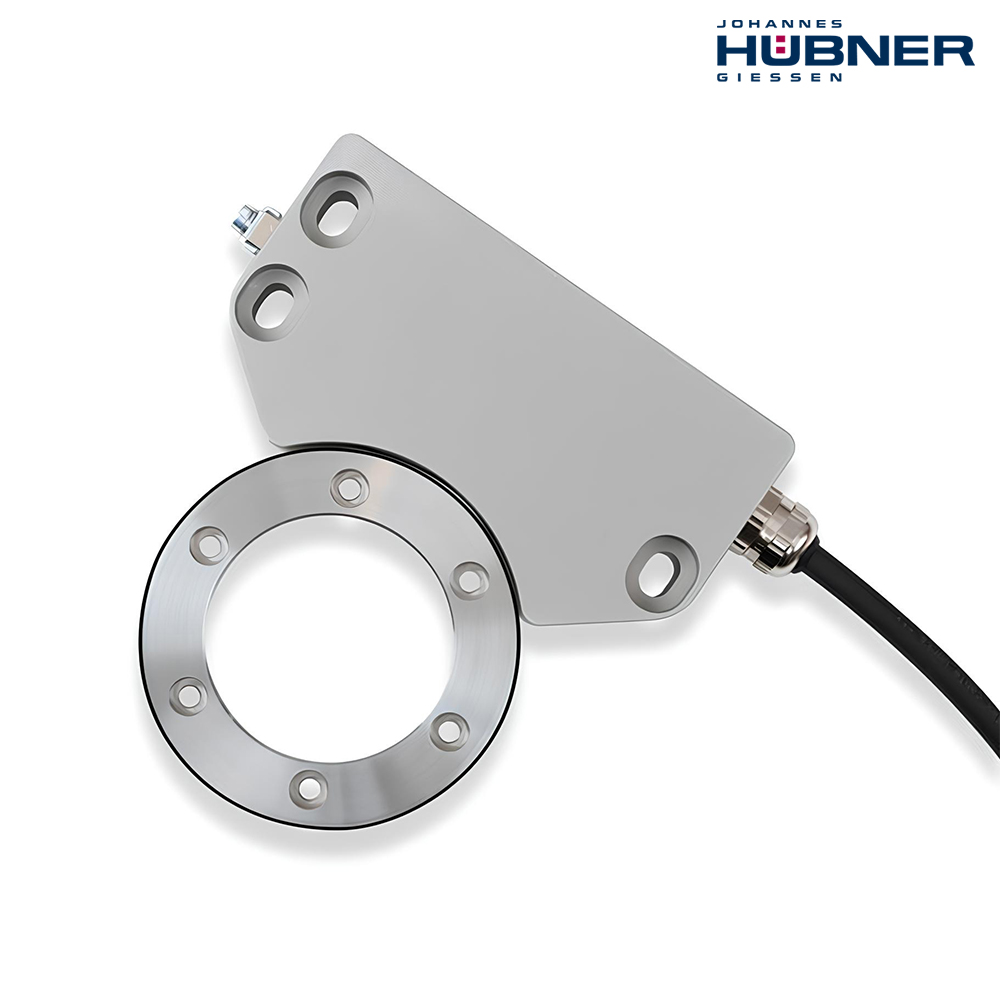

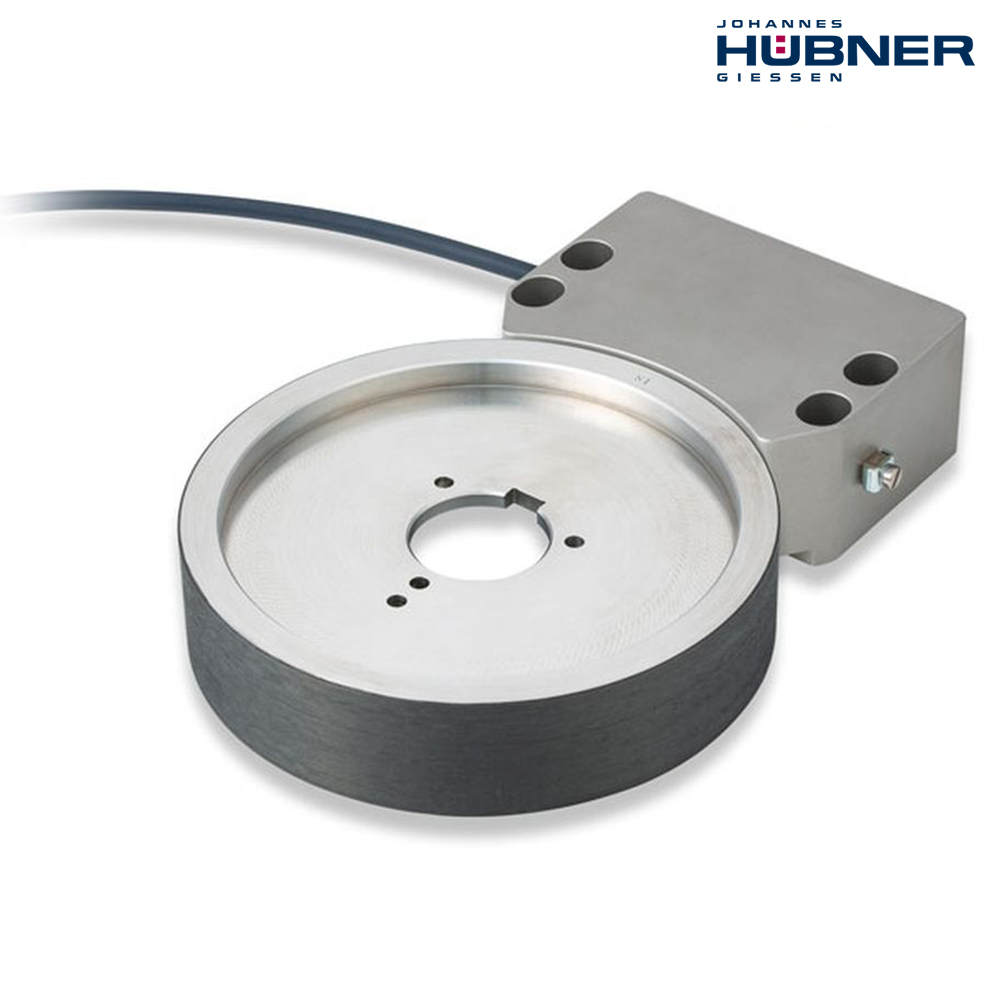

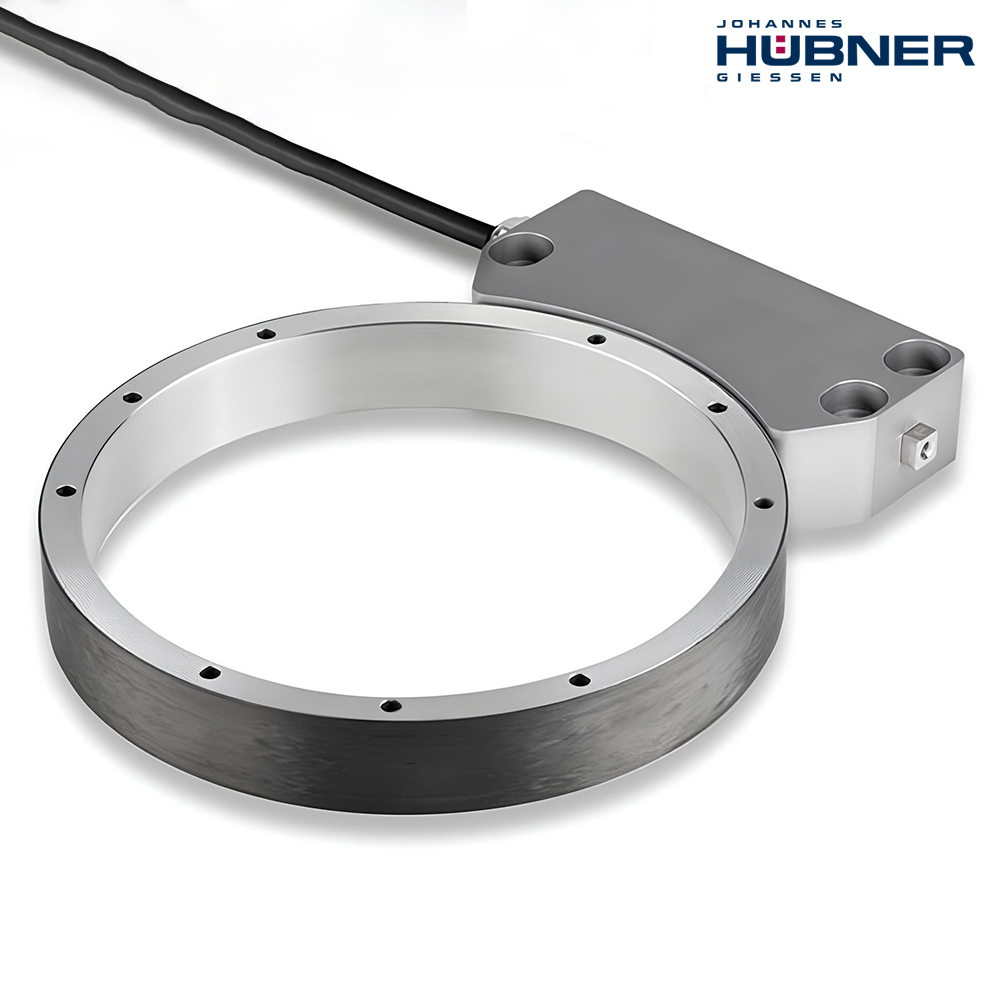

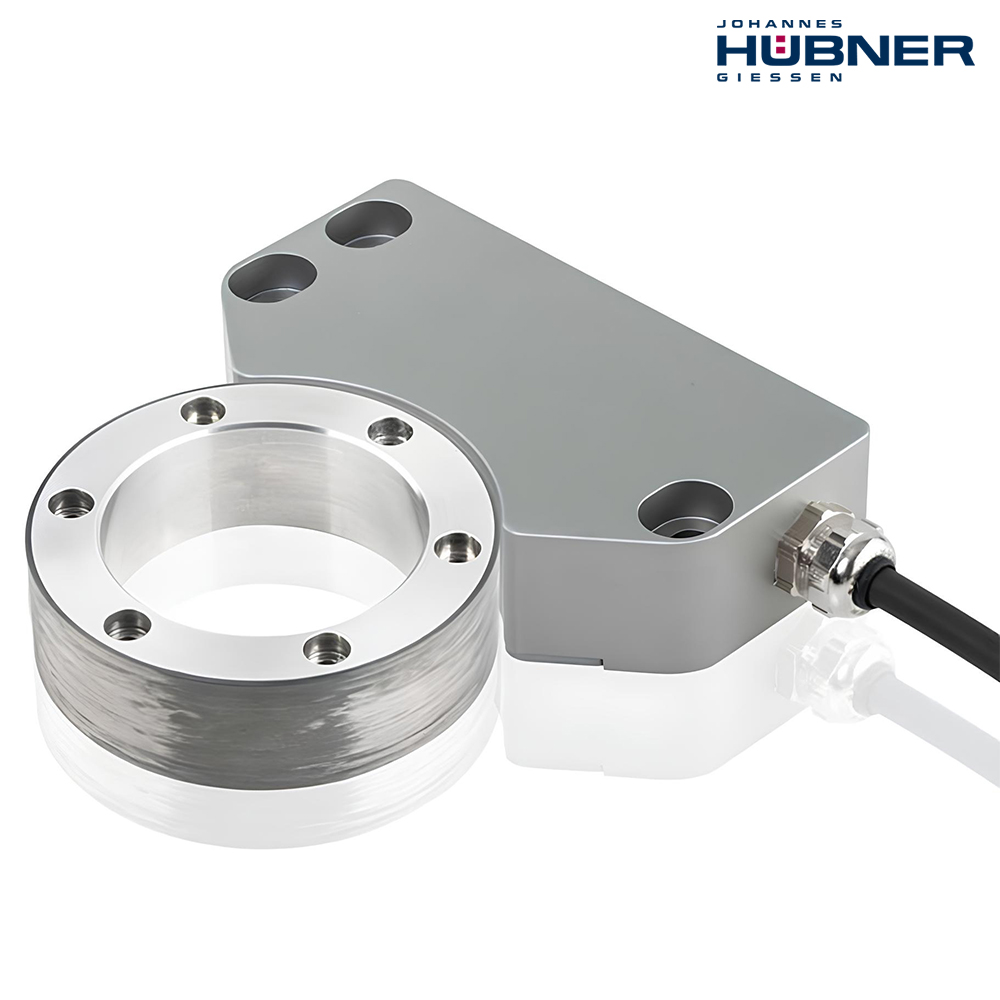

Robust magnetic encoders for accurate speed and position measurement.
Explosion protection according to ATEX: Gas (Zone 2, Ex II 3G Ex nC IIC T4 Gc).
Designed for hollow shafts with diameters up to Ø 380 mm.
Absolute encoder resolution: 12–16 bit singleturn with SSI interface.
Incremental encoder resolution: up to 65,536 pulses per revolution (HTL / TTL).
Degree of protection IP67 with an ambient operating temperature range from -30 °C to +80 °C.
Optional additional scanning head for enhanced functionality.
| Technical Data | |
| Attribute | Value |
| Supply voltage | 12–27 VDC |
| Signal amplitude | HTL or TTL |
| Resolution | Singleturn 12–16 bit (4096–65536 steps per rotation) |
| Number of pulses | Up to 65536 |
| Output signals | 0° and 90° track, reference pulse, check output and inverted signals |
| Interface / Product name | SSI (gray or binary) |
| Maximum Speed / Frequency | 4000 rpm / max. 200 kHz (HTL, TTL), max. 1 MHz (CLK) |
| Electrical connection | Fixed cable |
| Type of construction | Hollow shaft: up to Ø 380 mm Axial tolerance: ±3 mm (offset scanning head/pulse wheel) Radial tolerance: up to 1.0 mm (air gap scanning head/pulse wheel) |
| Ambient temperature range | -30 °C to +80 °C |
| Degree of protection | IP67 |
| Weight | Size dependent |
| Device options / Function | Additional incremental output (separate scanning head) |
| Certificates / Approvals | Ex-proof according to ATEX: Gas (Zone 2): II 3G Ex nC IIC T4 Gc |
