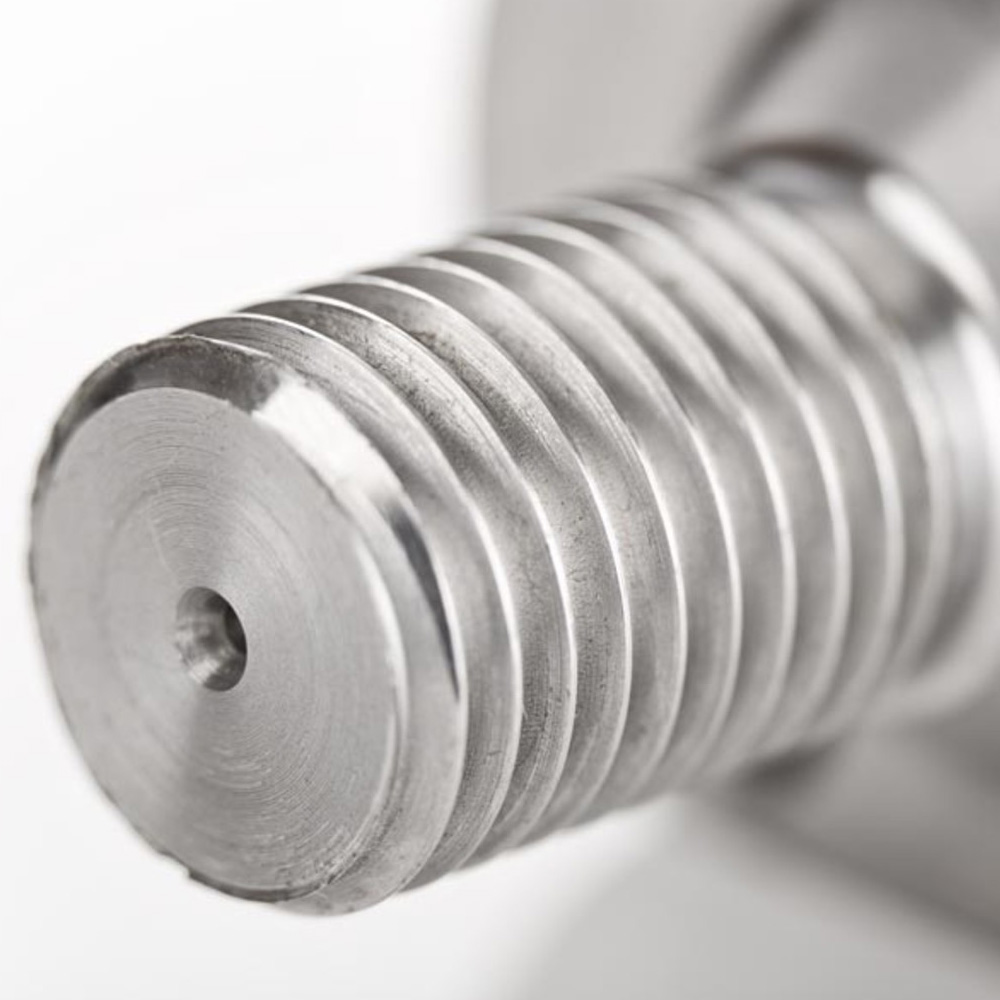

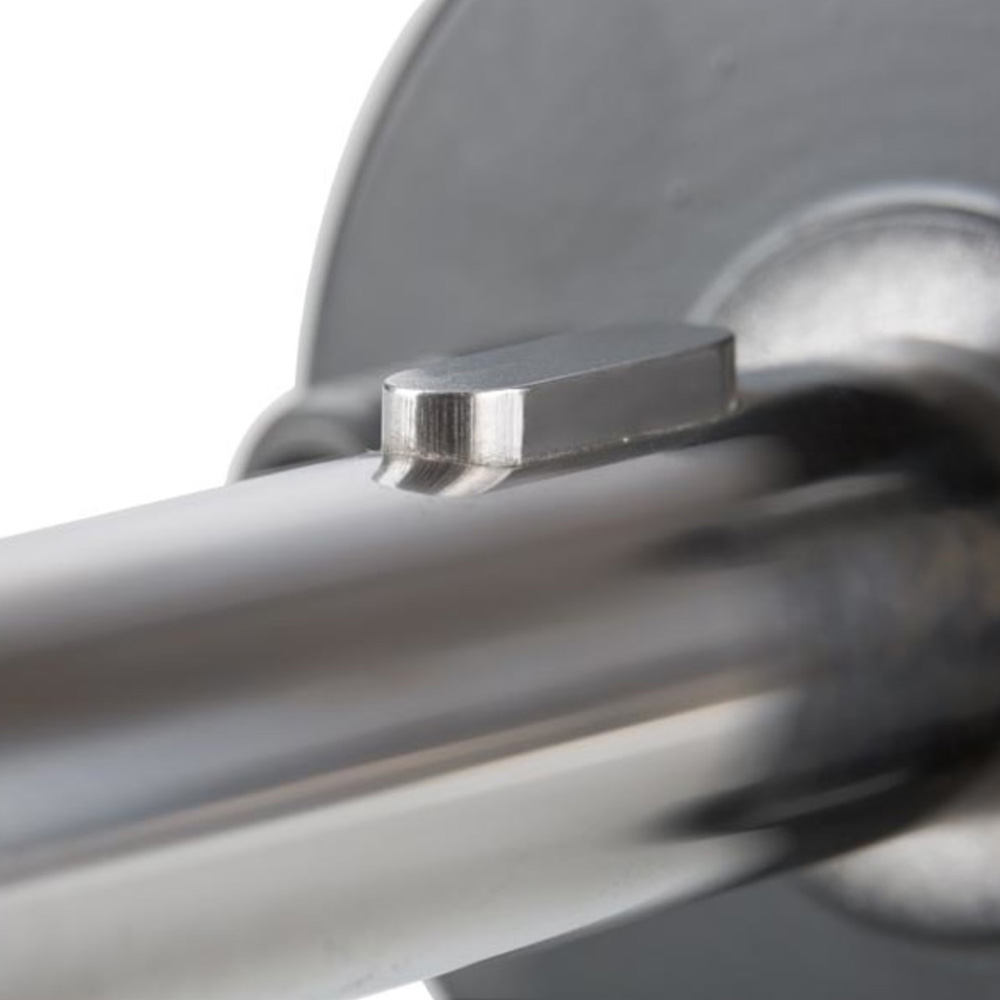

Attachment to shaft with centering thread
Ideal for retrofitting and replacing other shafts
Adapter shaft easily adjusted
Options: Certified safety component to DIN EN ISO 13849-2 (PL e) and isolated version
| Technical Data | |
| Attribute | Value |
| Product usage |
Screw-in type adapter shaft for an existing center hole in customer shaft. Possible for all encoder installation positions (for example, shaft facing up/down). |
| Mounting type |
- Centering thread M16, M20, M24, M30, M36, ¾", 1" with stub shaft Ø 20 mm (encoder series 4/40/41) - Centering thread M42, M48 and larger with stub shaft Ø 50 mm (encoder series 5/6/60) |
| Mounting accuracy | Calculated individually case-by-case /design as per consultation |
| Maximum rotation | Calculated individually case-by-case /design as per consultation |
| Temperature range | Calculated individually case-by-case /design as per consultation |
| Shock resistance | Calculated individually case-by-case /design as per consultation |
| Vibration resistance | Calculated individually case-by-case /design as per consultation |
| Insulated against currents | Yes (optional) |
| Mechanical options | |
| Special features and certificates | |
| The rugged solution for shafts with centering thread | |
| Flange adapter shafts facilitate the convenient, simple and stable attachment of hollow shaft encoders to large shafts with a centering thread. Thanks to three integrated ball thrust screws it is possible to easily and precisely adjust the adapter shafts. Screw-in type adapter shafts are ideally suitable for retrofitting and replacement solutions. If required, they are also available as certified safety components with fault exclusion to DIN EN ISO 13849-2 (PL e) and as an isolated version to shield against shaft currents. | |
