Modular encoder system U-ONE Generation II (LWL) for position and speed monitoring.

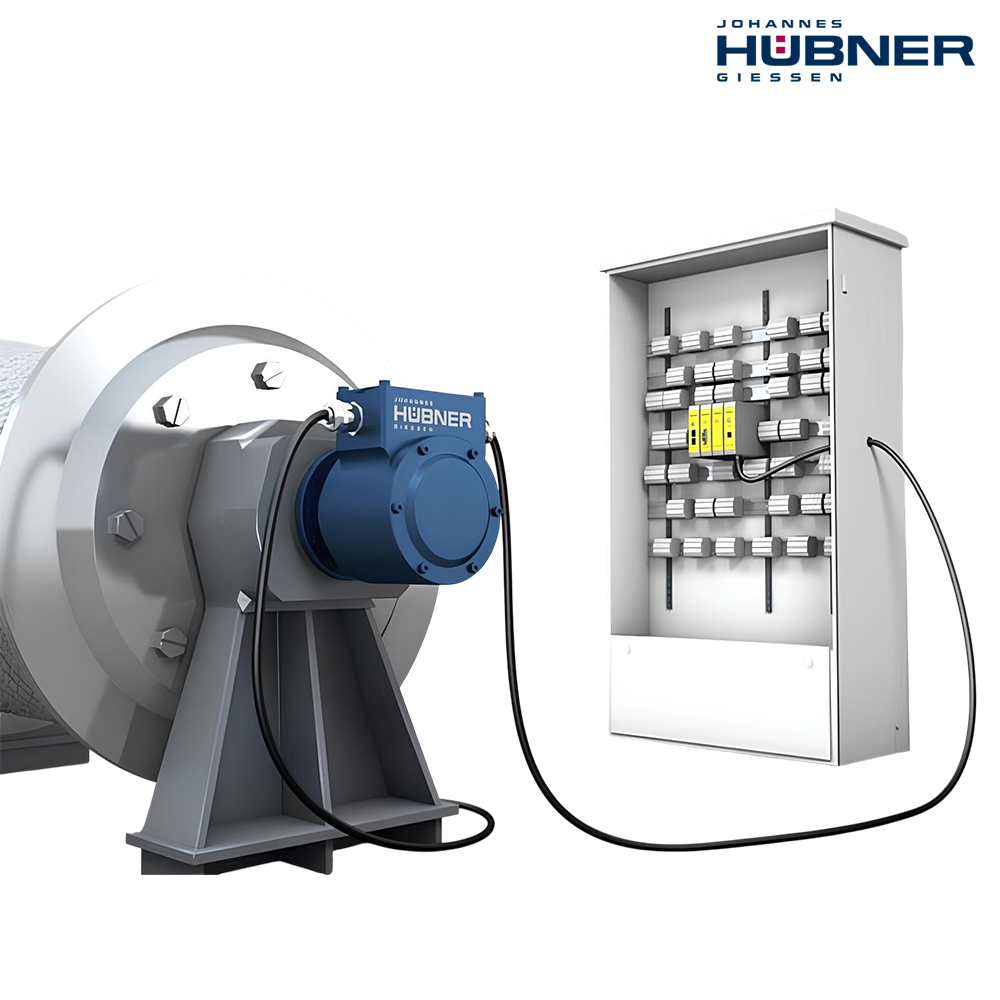

Measurement directly on the application shaft, with connection via just one fiber optic cable to evaluation/function modules in the switchboard.
Available with hollow shaft Ø 20 mm or solid shafts up to Ø 14 mm (flange or foot mounting).
Resolution: 13-bit singleturn / 15-bit multiturn.
Interfaces: PROFIBUS, PROFINET, incremental (HTL), and analog 4–20 mA.
Up to 15 programmable switching outputs for speed and position monitoring.
Optional certification for safety applications up to SIL 2 / PL d.
| Technical Data | |
| Attribute | Value |
| Supply voltage | 15–27 VDC |
| Resolution | › Multiturn: 15 bit (32768 rotations) › Singleturn: 13 bit (8192 steps per rotation) |
| Switching outputs | Speed and Position |
| Signal outputs / Interfaces | Via function modules in the switchboard: › PROFINET IO | UO-EPN › PROFIBUS-DP | UO-SPB › PROFINET over PROFINET IO | UO-SPN › PROFINET over PROFIBUS-DP | UO-SPB › Incremental and current output 4–20 mA (switches LS) | UO-SCU |
| Maximum Speed / Frequency | 2800 rpm |
| Electrical connection | Details see basic unit and electronic function modules of system solution U-ONE Generation II (LWL). |
| Type of construction | › Solid shaft (B5, B35): Ø 11 mm, Ø 14 mm with feather key › Hollow shaft: Ø 20 mm with keyway |
| Device temperature range | › Basic unit: -25 °C to +85 °C › Electronic function modules: -25 °C to +60 °C |
| Degree of protection | › Basic unit: IP66 › Electronic function modules: IP20 (switchboard installation) |
| Weight | approx. 2.5 kg (basic unit only) + weight of the individual modules |
| Device options / Function | Details see electronic function modules of system solution U-ONE Generation II (LWL). |
| Mechanical options | Details see basic units of system solution U-ONE Generation II (LWL). |
| Certificates / Approvals | Safety certified: SIL 2 / PL d for basic unit (UWL-II) and modules UO-SCU, UO-SCU-UG, UO-SPB, UO-SPN. |
