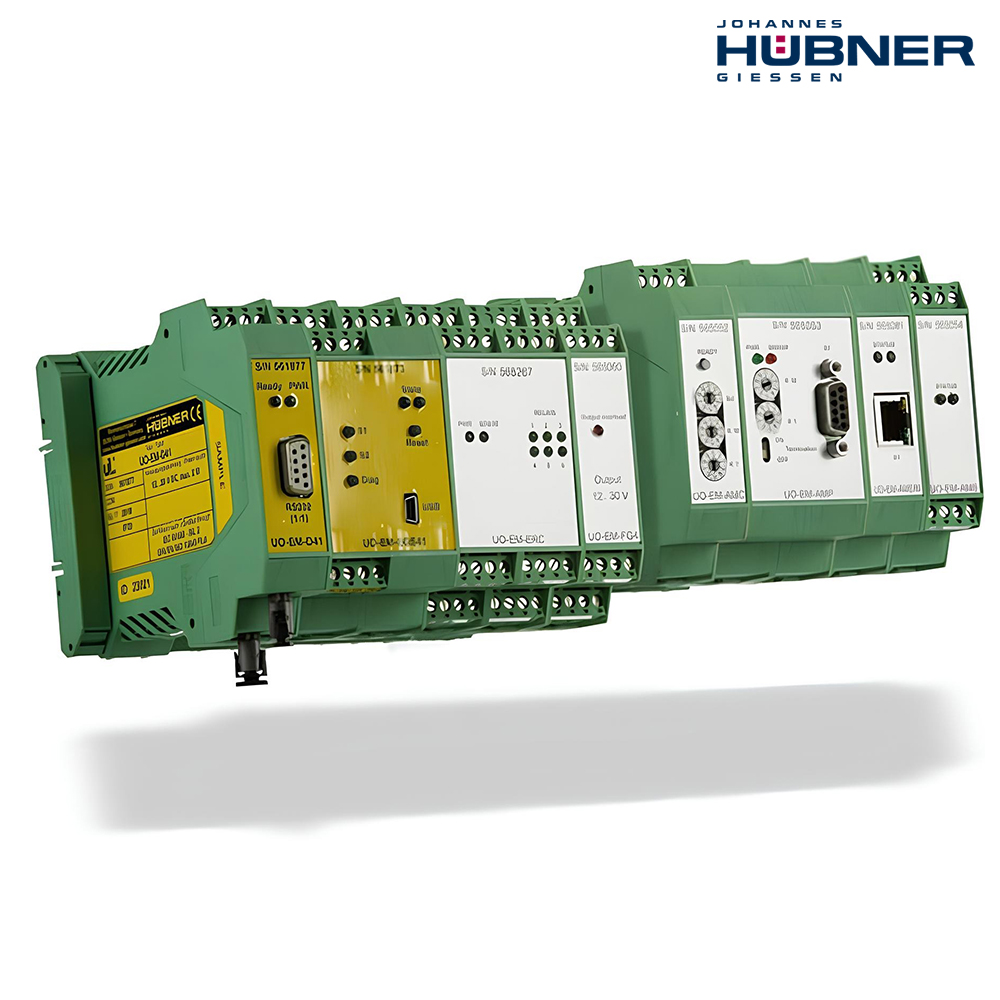

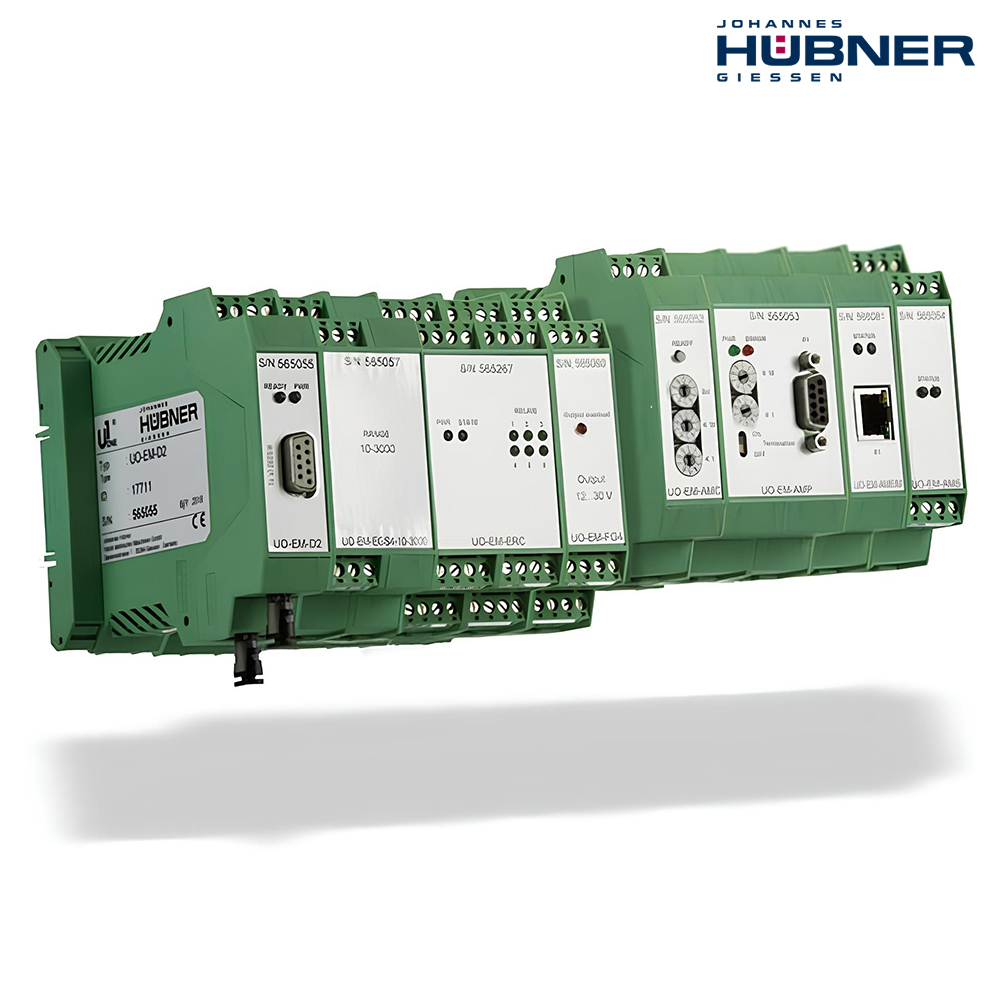

Absolute encoder module for encoder system U-ONE Generation I for installation in the switchboard
Output of absolute position values
Resolution: 12-bit singleturn / 12-bit multiturn
Degree of protection: IP20; temperature range: -25 °C to +70 °C
Interfaces: SSI, PROFIBUS, CAN bus, Modbus
Programmable features available (as per system configuration)
| Technical Data | |
| Supply voltage | 12-30 VDC |
| Dimensions | UO-EM-AMC / UO-EM-AMS / UO-EM-AME / M: 99.5 x 22.5 x 114.5 mm (modular electronics housing for DIN rail) UO-EM-AMP: 99.5 x 45 x 114.5 mm (modular electronics housing for DIN rail) |
| Signal outputs / Interfaces | CAN-Bus | UO-EM-AMC PROFIBUS-DP | UO-EM-AMP SSI | UO-EM-AMS Modbus TCP | UO-EM-AME/M Resolution: 12-bit singleturn / 12-bit multiturn |
| Electrical connection | Screw terminals / connectors for bus connections Series connectors to preceding and following modules (internal bus connection) |
| Device temperature range | -25 °C to +70 °C |
| Degree of protection | IP20 (switchboard installation) |
| Device options / Function | Can be combined with other modules of U-ONE Generation I system solution |
| Certificates / Approvals | UL / CSA |
