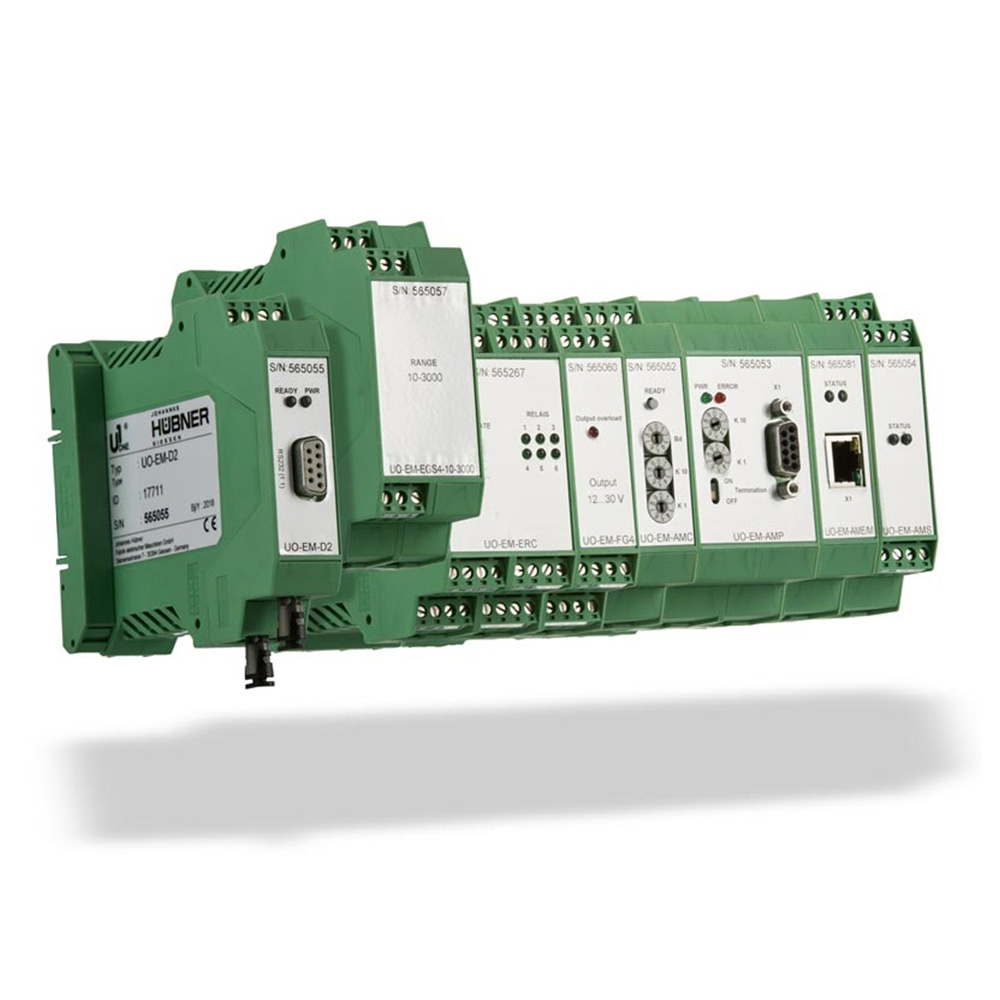

Decoding FOC signals of the U-ONE basic units

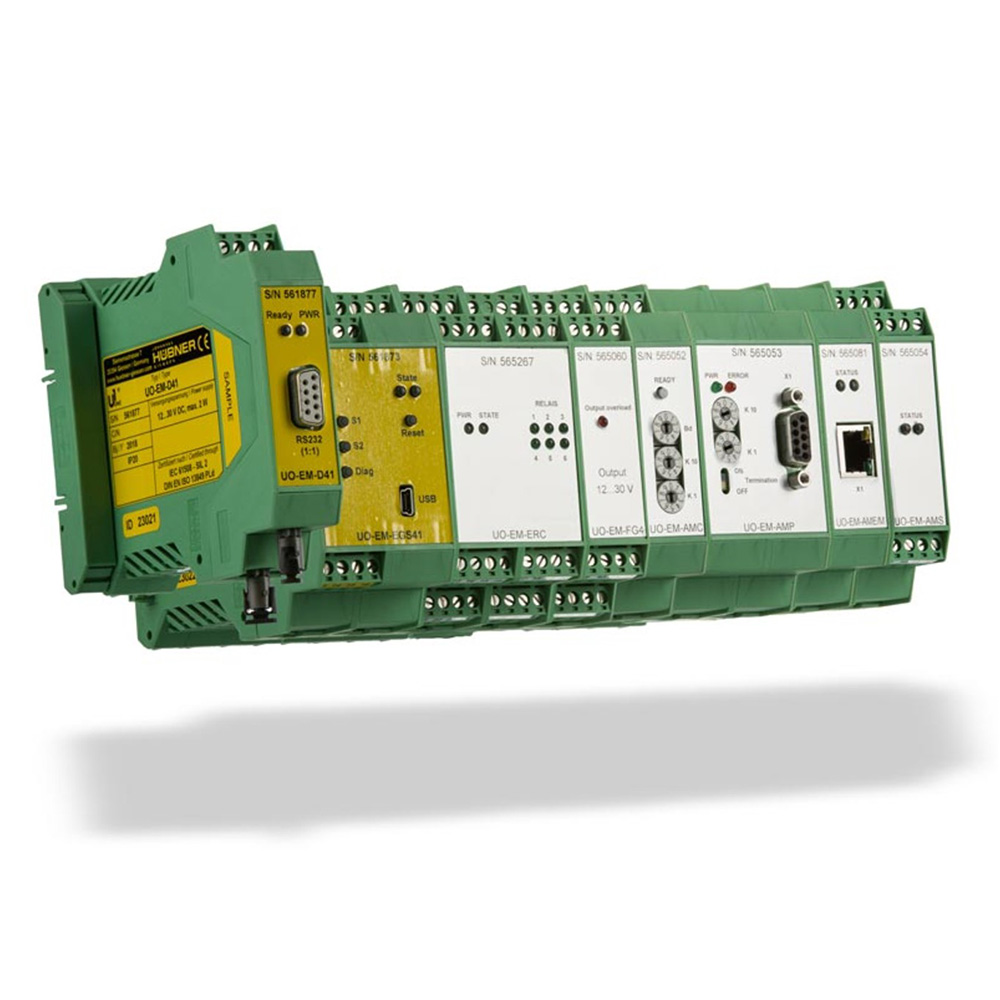

Power further U-ONE function modules
Central programming interface RS 232
Options: SIL 2 / PL d certification (UO-EM-D41)
| Technical Data | |
| Attribute | Value |
| Supply voltage | 12-30 VDC |
| Signal outputs/Interfaces |
- RS 232 interface to facilitate programming - LED indicators: Operational and FOC connection OK |
| Electrical connection |
- 2x ST connectors for FOC 50/125 µm or 62.5/125 µm - 2 screw terminals for supply voltage - Series connectors to following modules (internal bus connection) - RS 232 connector to facilitate programming |
| Dimensions | 99.5 x 22.5 x 114.5 mm (modular electronics housing for DIN rail) |
| Device temperature range | -25 °C to +70 °C |
| Degree of protection | IP20 (switchboard installation) |
| Device options | Combines with other modules belonging to the U-ONE System |
| Mechanical options | |
| Special features and certificates |
- UOM 41L and associated modules UO-…-… 41: SIL 2 (DIN EN 61508); PL d (DIN EN ISO 13849) - UL/CSA |
| The translators | |

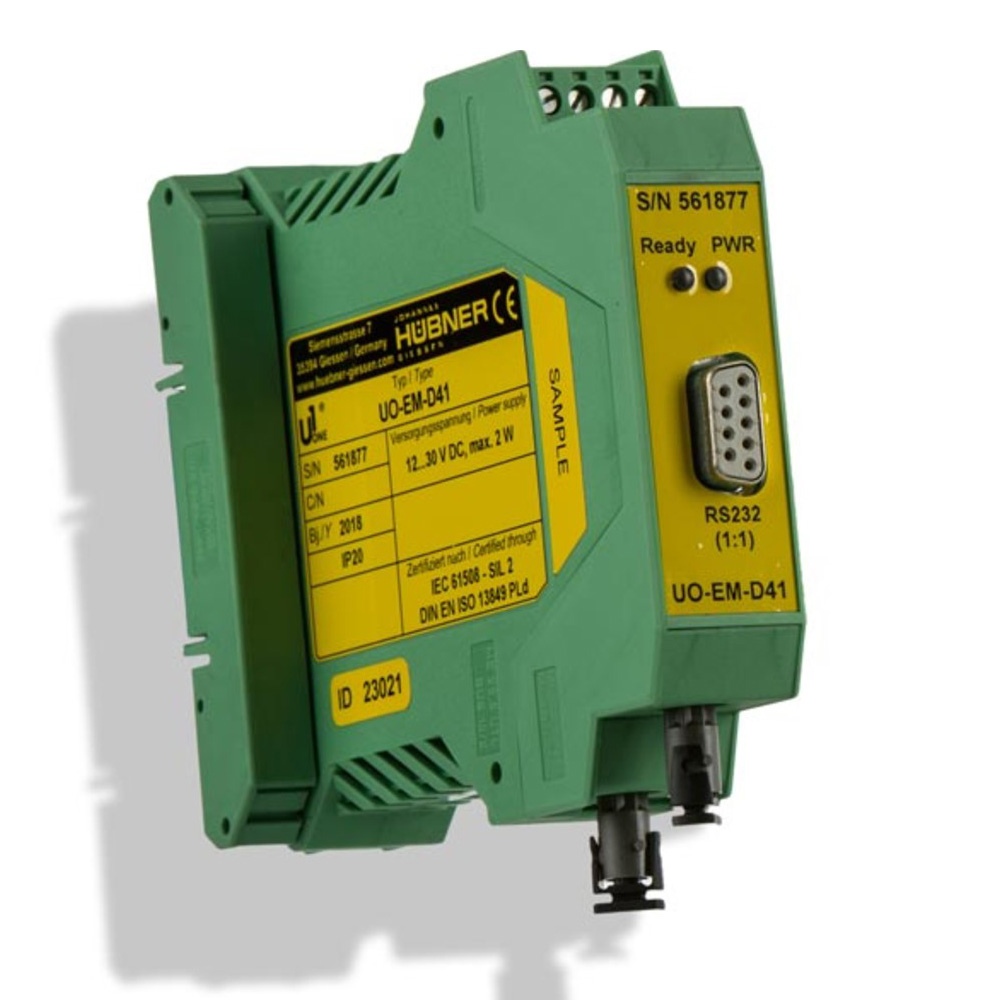

| FOC decoder modules convert optical FOC signals from the basic units of the universal encoders to electric signals and feed them on to other function modules of the U-ONE system. The fiber optic cables are connected via ST connectors, the supply voltage via a terminal strip. | |
