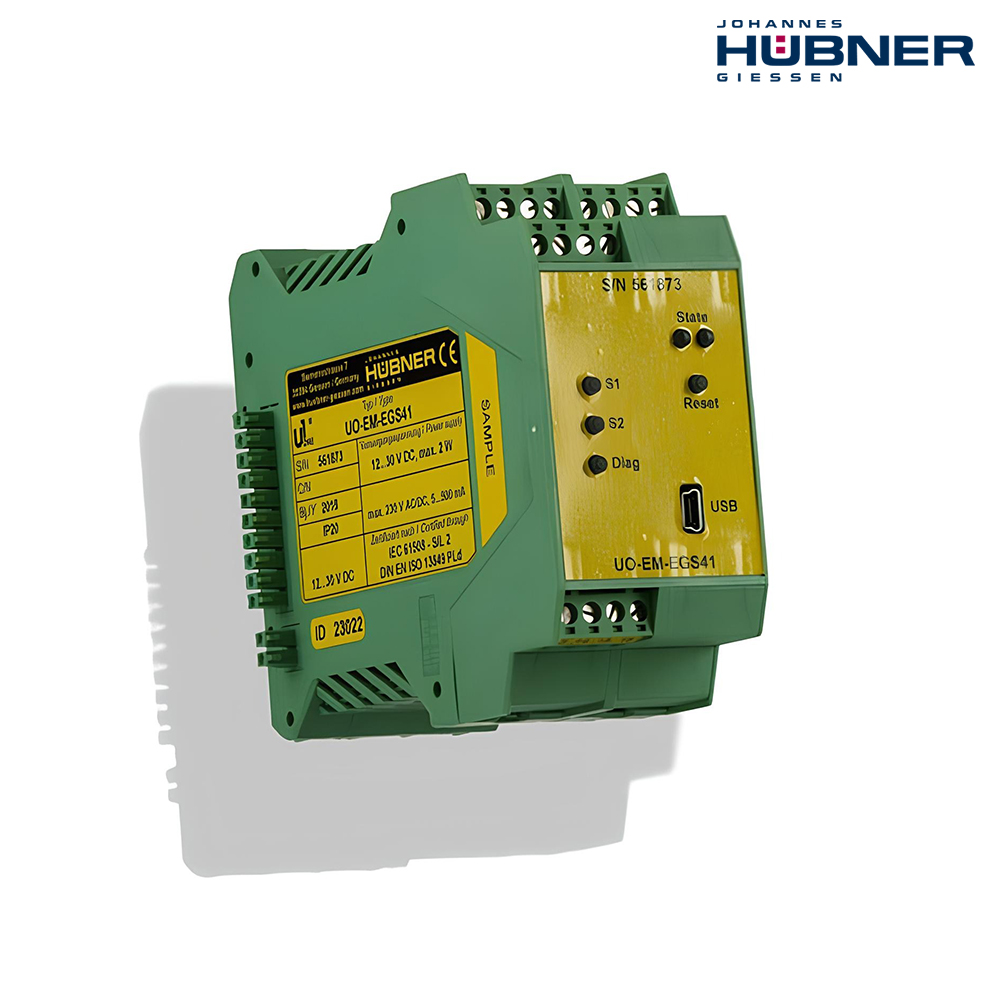

Position switch module for the U-ONE Generation I encoder system, designed for installation in the switchboard.
Features 6 programmable relay position switches for accurate position monitoring.
Switching capacity up to 250 V AC/DC and 0.5 A.
Degree of protection IP20 with an operating temperature range from -25 °C to +70 °C.
Programmable functions include preset, switching range, hysteresis, direction of rotation, unit selection, identification, and conversion factor.
Can be combined with multiple modules to expand the number of programmable position switches.
| Technical Data | |
| Attribute | Value |
| Supply voltage | 12–30 VDC |
| Dimensions | 99.5 × 22.5 × 114.5 mm (modular electronics housing for DIN rail) |
| Switching outputs | Position |
| Signal outputs / Interfaces | 6 programmable position switches (changeover contact 250 V / 0.5 A AC/DC) Status output: 1 potential-free relay output (NC contact 250 V / 0.5 A AC/DC) Preset: 1 optorelay (preset input 12–30 V / 5 mA DC and handshake output 40 V / 0.1 A DC) Programmable functions (via decoder module UO-EM-D2 – ERCPro software): Operating range inputs with inversion option, hysteresis value, count direction, unit, identification, last alteration (automatic input), and conversion factor. LED indicators: Power, Status, Relay status |
| Electrical connection | Screw terminals to connect switches Series connectors to preceding and following modules (internal bus connection) |
| Device temperature range | -25 °C to +70 °C |
| Degree of protection | IP20 (switchboard installation) |

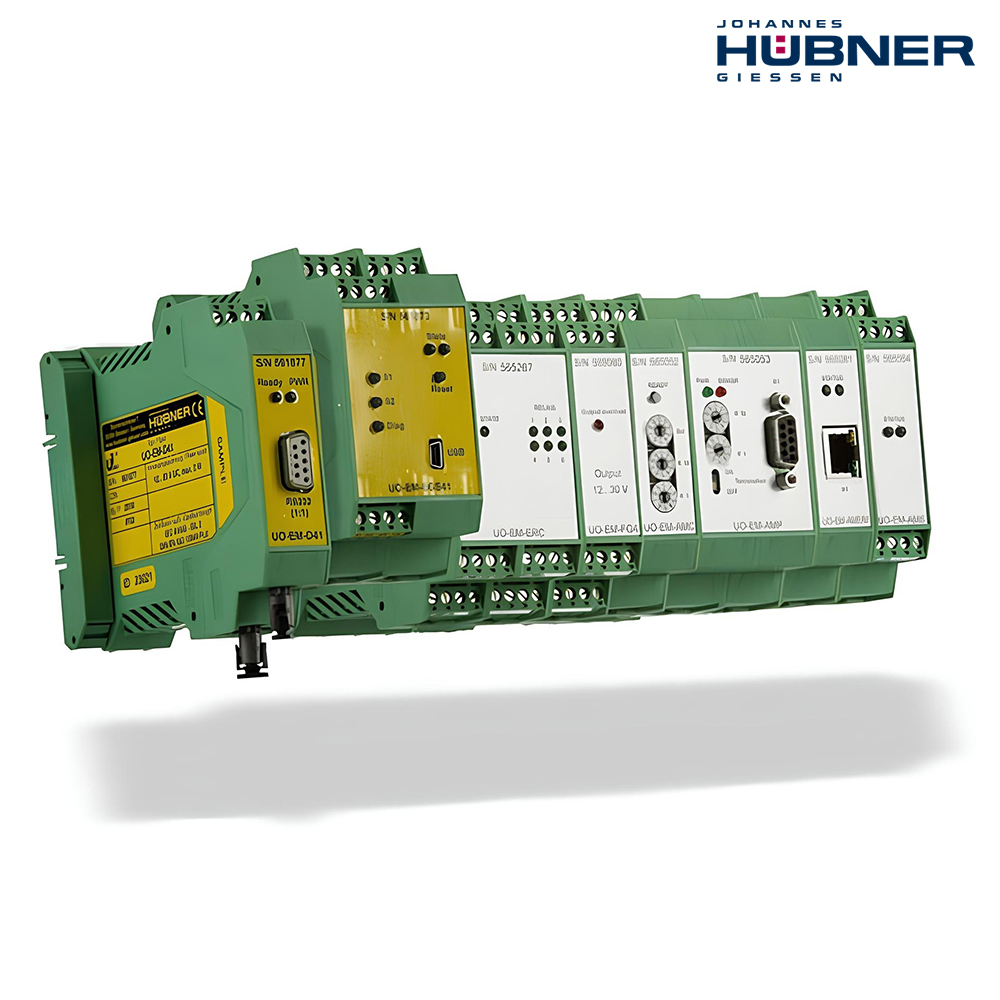

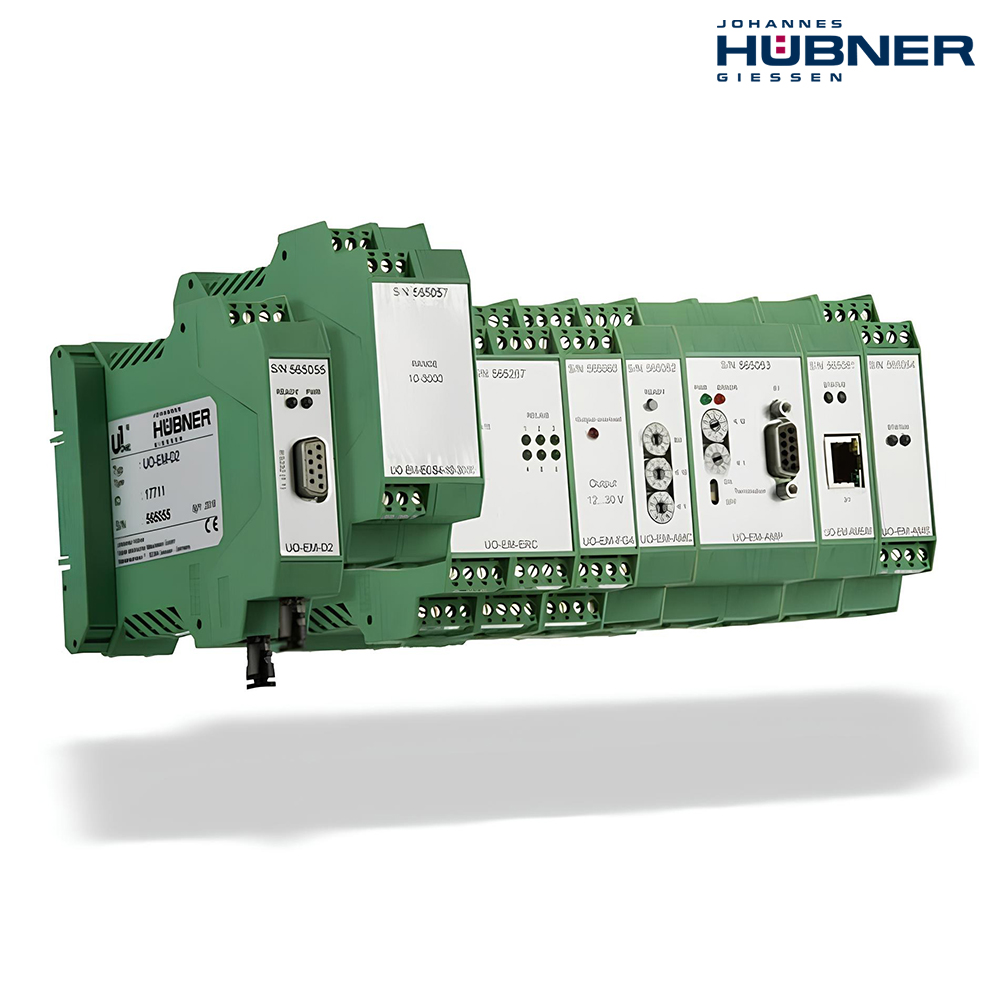

| Device options / Function | Can be combined with other modules of the system solution U-ONE Generation I. |
| Certificates / Approvals | UL/CSA |
