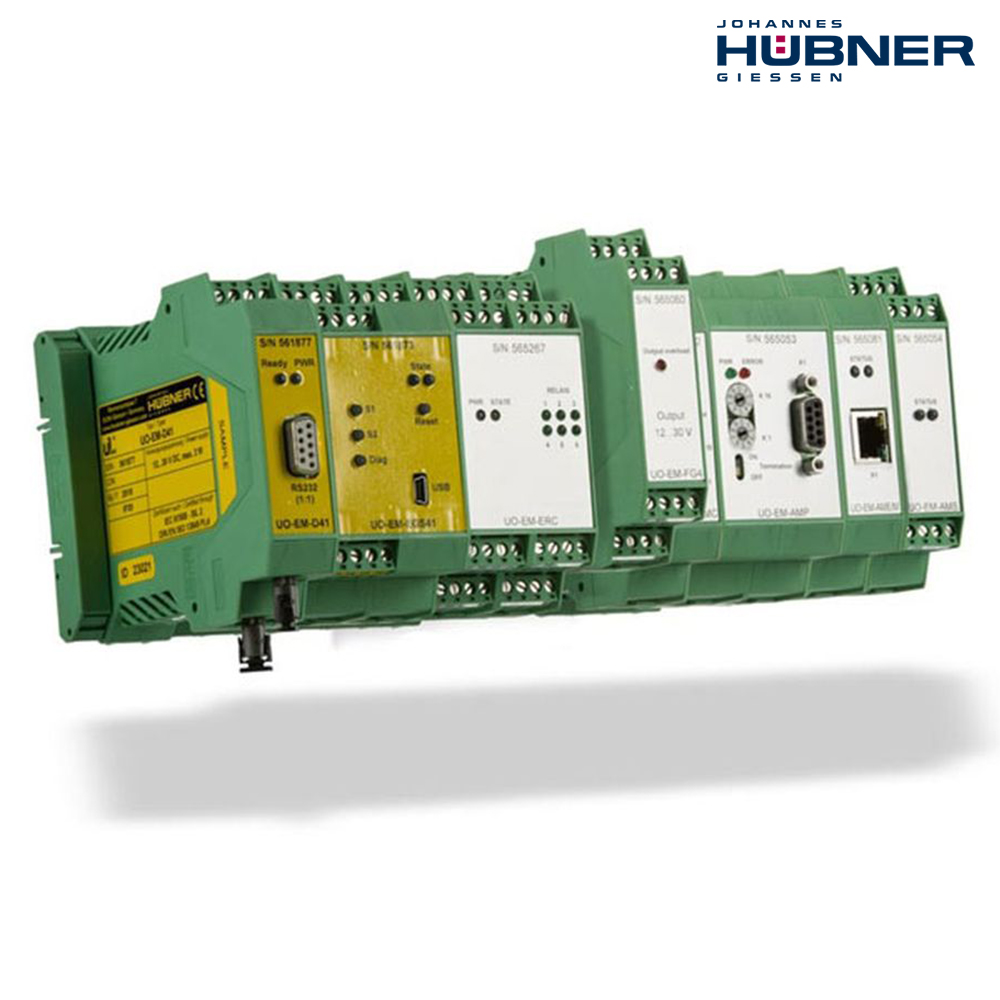

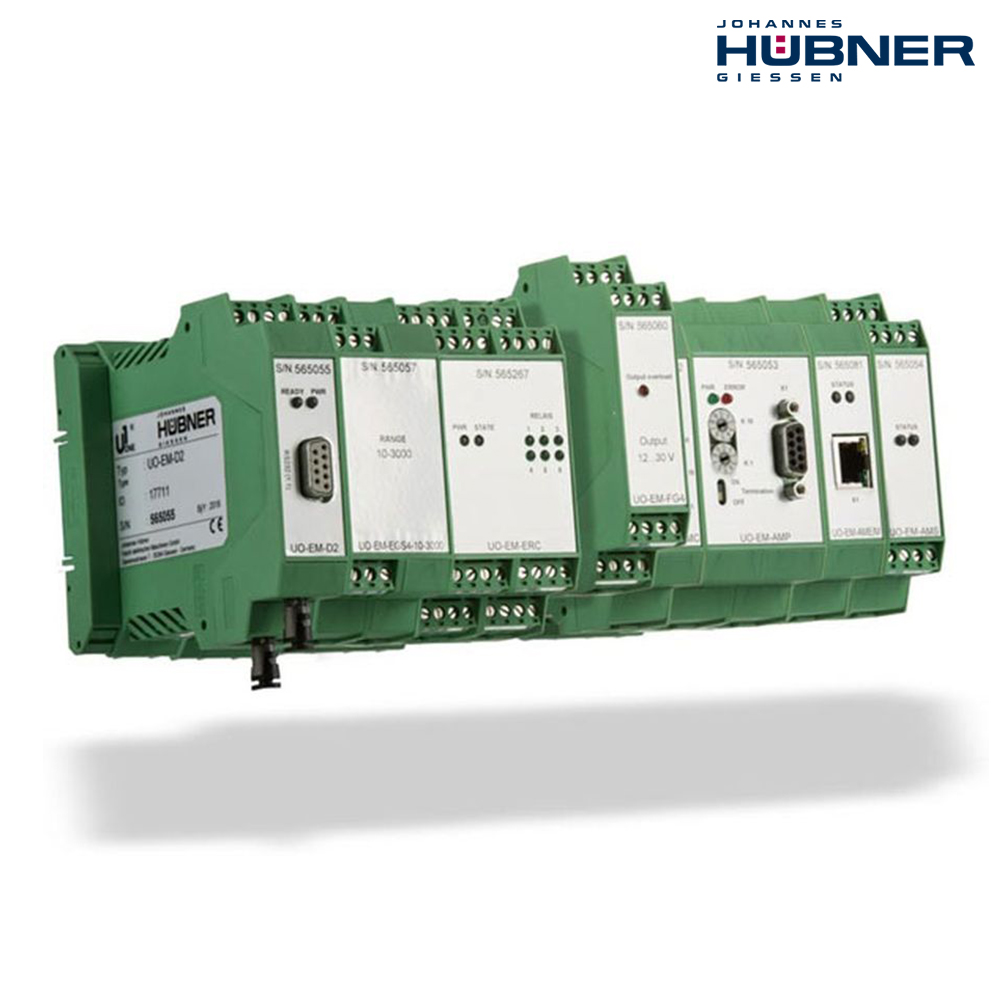

Incremental value module for the U-ONE Generation I encoder system, designed for installation in the switchboard.
Provides rpm and speed output for reliable motion monitoring.
Supports HTL / TTL output with 1024 pulses per revolution (ppr) and a maximum frequency of 100 kHz.
Degree of protection IP20 with an operating temperature range from -25 °C to +70 °C.
Output signals include 0°, 90°, N, ERR, and inverted signals.
Integrated LED display indicates output overload status.
| Technical Data | |
| Attribute | Value |
| Supply voltage | 12–30 VDC |
| Dimensions | 99.5 × 22.5 × 114.5 mm (modular electronics housing for DIN rail) |
| Signal outputs / Interfaces | HTL or TTL (0°, 90°, N, ERR and respective inverted) Pulse rate: 1024 ppr Maximum frequency: 100 kHz LED indicator: Overload at outputs |
| Electrical connection | Screw terminals to connect the incremental output signals Series connectors to preceding and following modules (internal bus connection) |
| Device temperature range | -25 °C to +70 °C |
| Degree of protection | IP20 (switchboard installation) |
| Device options / Function | Can be combined with other modules of the system solution U-ONE Generation I |
