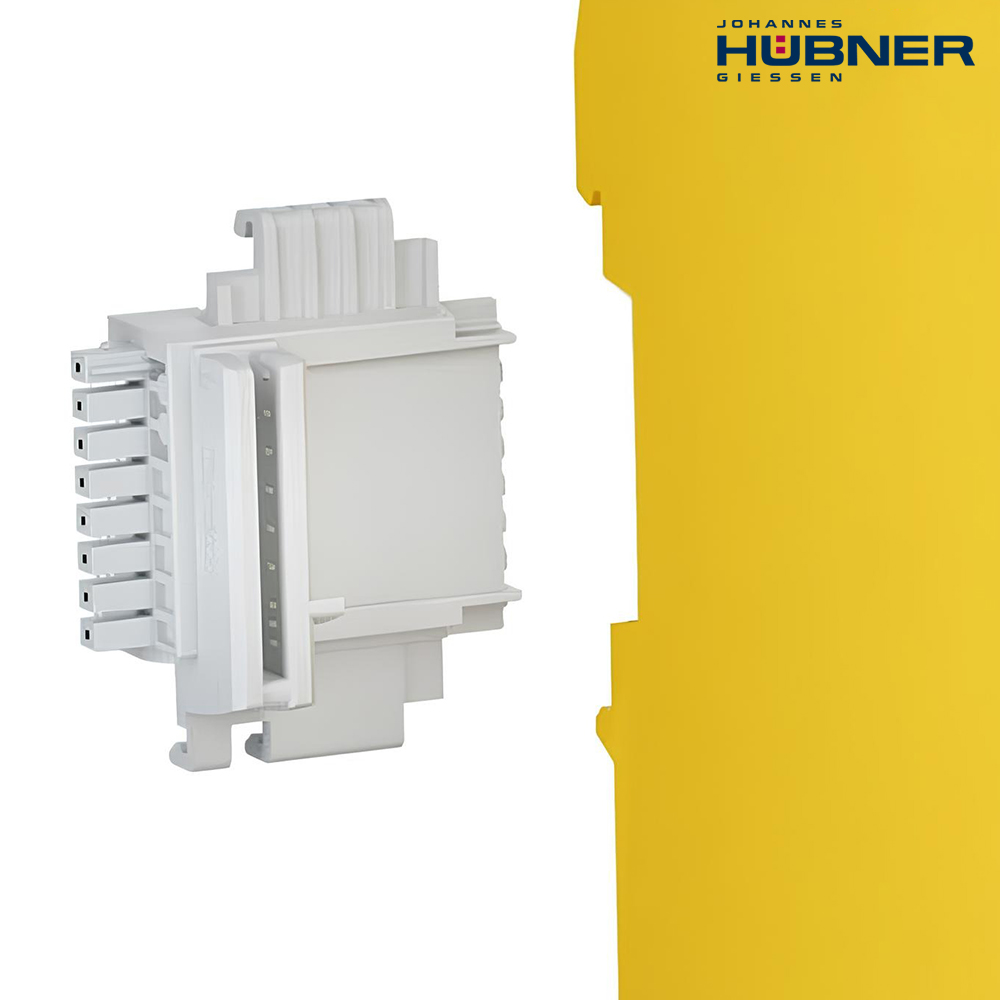

PROFIBUS module for encoder system U-ONE Generation II (LWL) for installation in the switchboard
Transmission of position and speed data to the PLC
Resolution: 13-bit singleturn / 15-bit multiturn
Degree of protection: IP20; temperature range: -25 °C to +60 °C
Programmable functions: counting direction, standstill tolerance, preset, integration time (safe/unsafe)
Options: certified for safety applications up to SIL 2 / PL d; combination of 2 bus modules
| Technical Data | |
| Supply voltage | Power supplied via controller module |
| Dimensions | UO-EPB: 100 x 25 x 110 mm (modular electronics housing for DIN rail bus connector) UO-SPB: 100 x 60 x 110 mm (modular electronics housing for DIN rail bus connector) |
| Signal outputs / Interfaces | PROFIBUS-DP | UO-EPB PROFIsafe via PROFIBUS-DP | UO-SPB LED indicators: Operating conditions / warning |
| Resolution | UO-EPB: 12-bit singleturn / 12-bit multiturn UO-SPB: 13-bit singleturn / 15-bit multiturn |
| Bus addressing | Via rotary coding switch |
| Configurable functions | UO-EPB: Counting direction, resolution, limit switches UO-SPB: Counting direction, standstill tolerance, preset, integration time (safe/unsafe), monitoring window size |
| Electrical connection | UO-EPB: D-SUB 9 connector (1x) UO-SPB: M12 connector (2x) Internal bus connection to preceding and following modules |
| Device temperature range | -25 °C to +60 °C |
| Degree of protection | IP20 (switchboard installation) |
| Device options / Function | Can be combined with other modules of U-ONE Generation II (LWL) Combination of 2 bus modules possible within one system (UO-EPN / SPN / EPB / SPB) |
| Certificates / Approvals | SIL 2 / PL d (for UO-SPB) |
