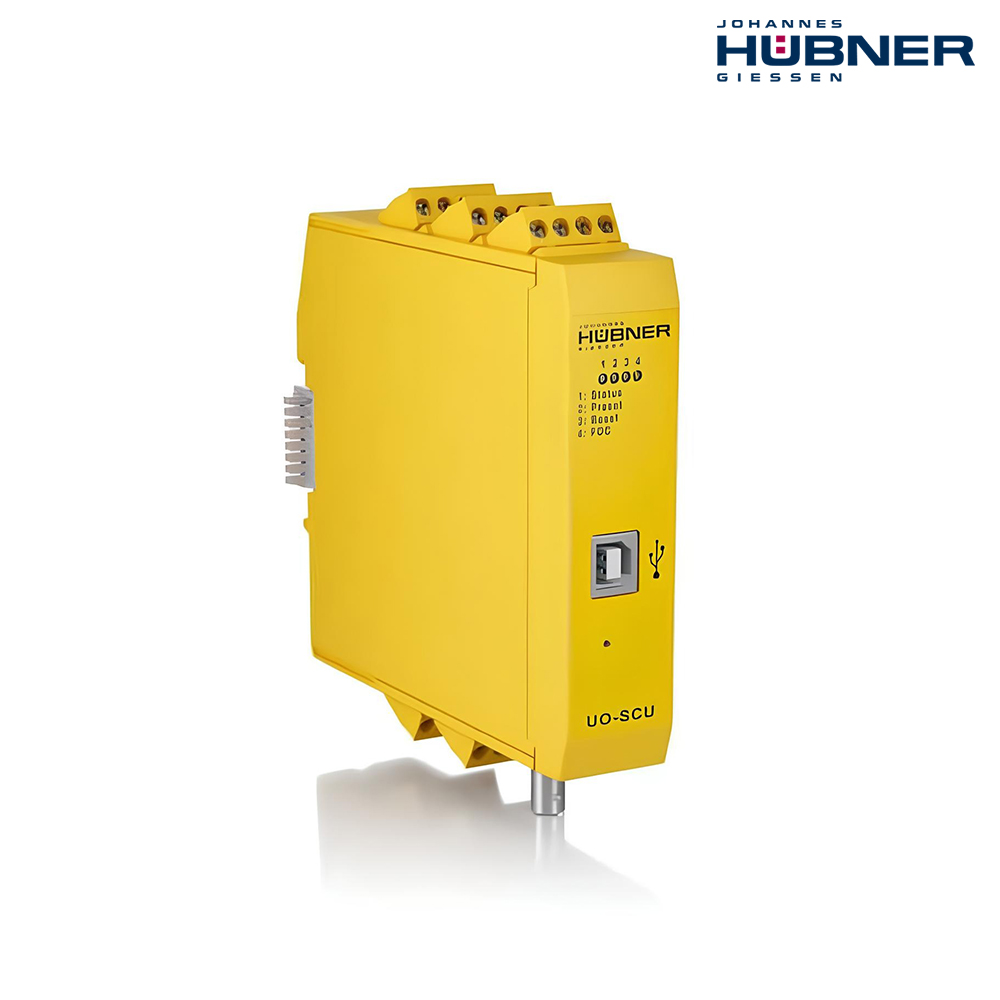

Controller module for encoder system U-ONE Generation II (LWL) for installation in the switchboard
Decoding and conversion of the fiber optic signal
Certified for safety applications up to SIL 2 / PL d
Status monitoring via digital status and error output with LED indicators
Degree of protection: IP20; temperature range: -25 °C to +60 °C
Programming via USB 2.0 interface
Programmable outputs: incremental output (HTL) and current output (4–20 mA)
| Technical Data | |
| Supply voltage | 12–30 VDC |
| Dimensions | 100 x 25 x 110 mm (modular electronics housing for DIN rail bus connector) |
| Signal outputs / Interfaces | USB 2.0 interface: Adjustable parameters LED indicators: Operating conditions / warning Outputs without SIL / PL: Incremental output (HTL) and current output (4–20 mA) |
| Electrical connection | 1 × ST connector FOC (50/125 µm or 62.5/125 µm) Screw terminals: 2: Supply voltage (+, -) 2: Reset (CH 1, CH 2) 2: Preset (CH 1, CH 2) 2: Status (CH 1, CH 2) 2: Error (CH 1, CH 2) 4: Incremental output (0°, 90°, each inverted) 2: Current output (4–20 mA) USB 2.0 programming interface DIN rail mounting to EN 50022 (35 mm height) |
| Device temperature range | -25 °C to +60 °C |
| Degree of protection | IP20 (switchboard installation) |
| Device options / Function | Can be combined with other modules of U-ONE Generation II (LWL) Additional functions (without SIL / PL): Real-time data via 4–20 mA output (configurable for speed and position) Speed measurement via incremental output (512 / 1024 / 2048 / 4096 ppr configurable) |
| Certificates / Approvals | SIL 2 / PL d (safety certified) |
