Modular encoder system for position and speed monitoring with built-on function modules directly on the application shaft.

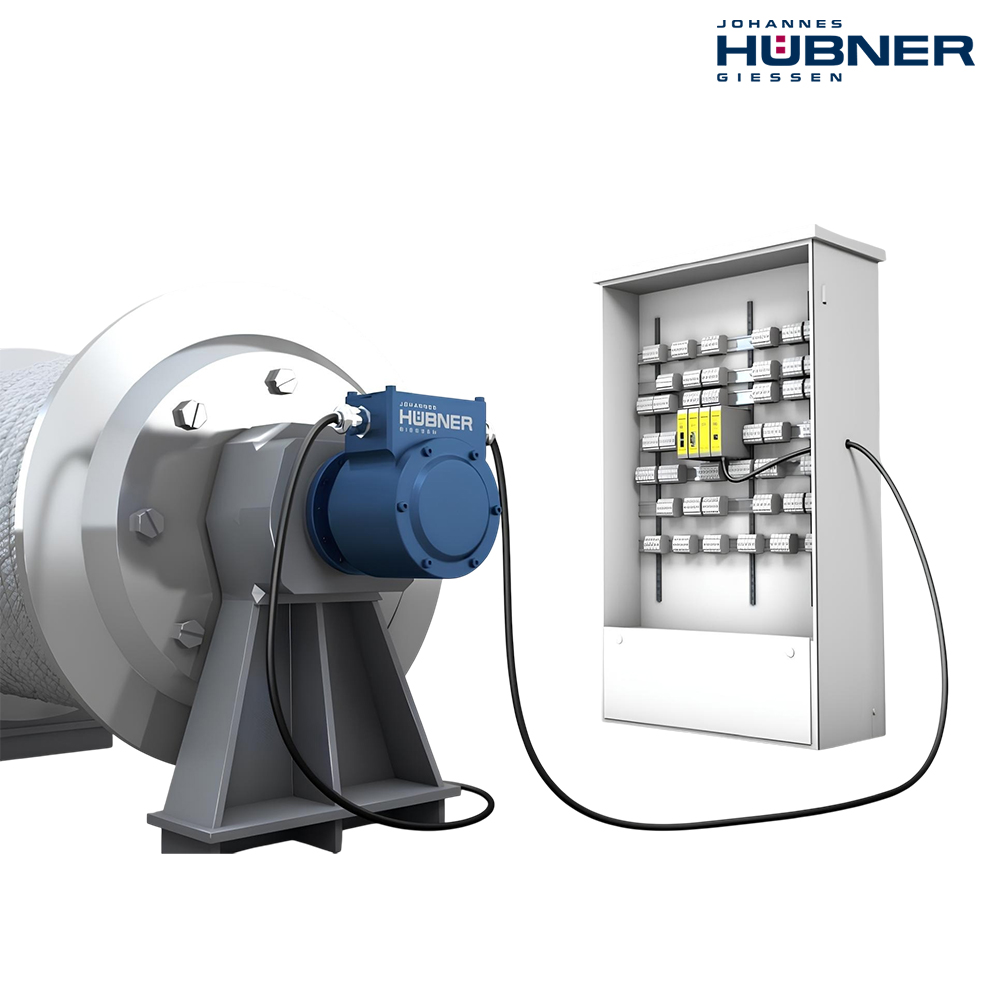

Signal transmission to the PLC via copper cable.

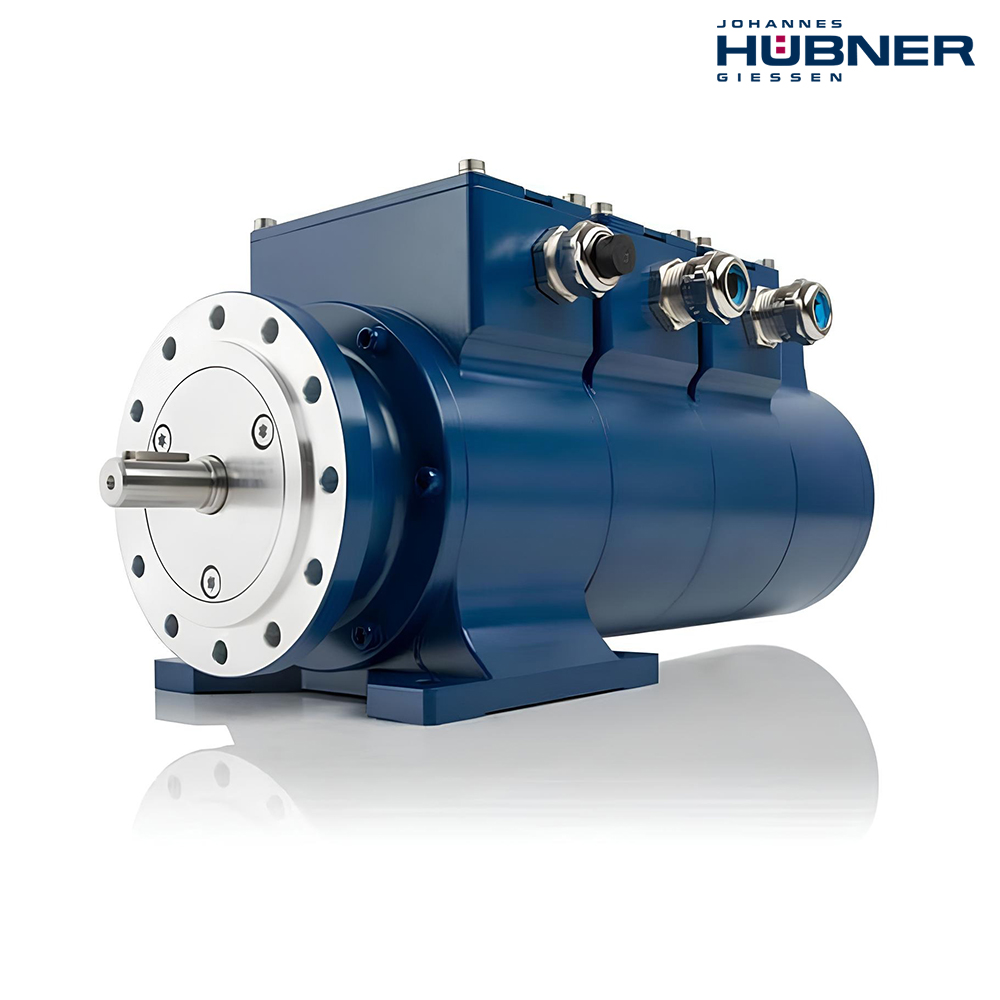

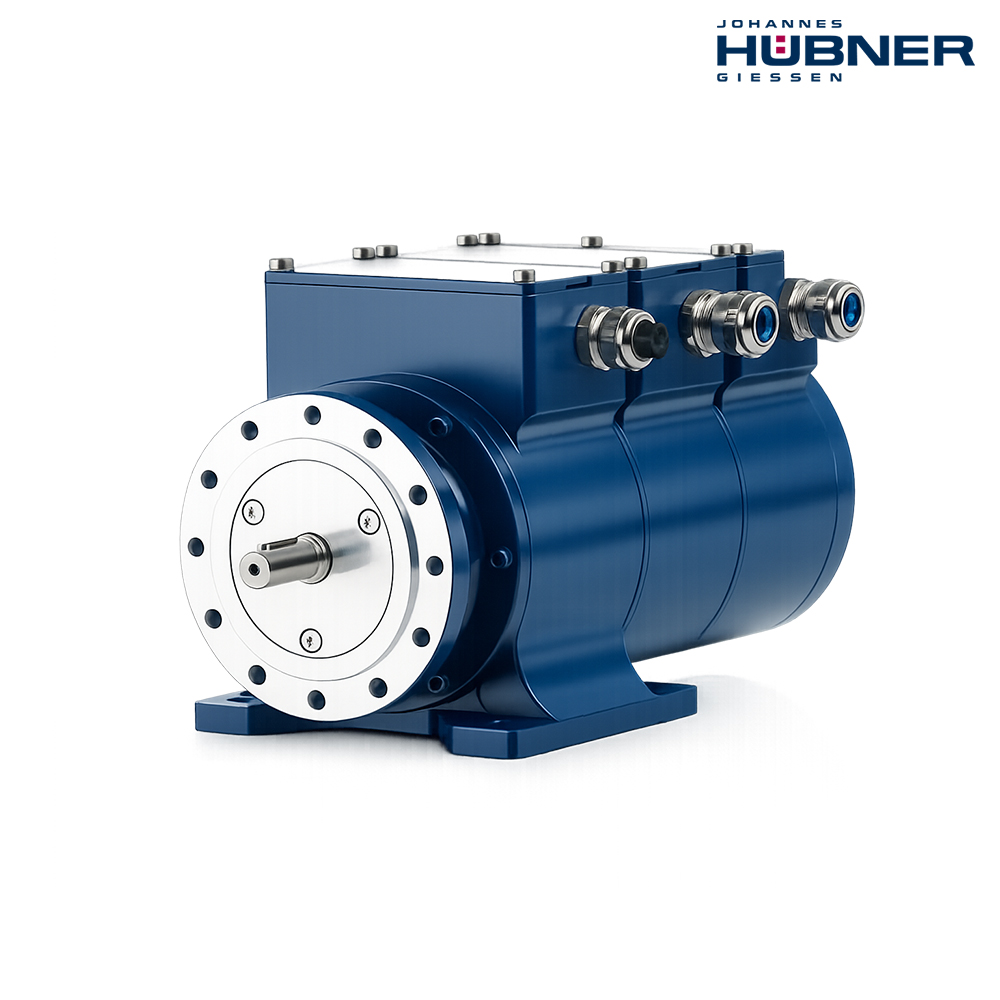

Available with a solid shaft Ø 14 mm (flange or foot mounting).
Resolution: 13-bit singleturn / 15-bit multiturn.
Interfaces: PROFIBUS, PROFINET, incremental (HTL), and analog 4–20 mA.
Up to 15 programmable switching outputs for speed and position monitoring.
Degree of protection IP66 with an operating temperature range from -25 °C to +70 °C.
Optional certification for safety applications up to SIL 2 / PL d.
| Technical Data | |
| Attribute | Value |
| Supply voltage | 15–27 VDC |
| Resolution | › Multiturn 15 bit (32768 rotations) › Singleturn 13 bit (8192 steps per rotation) |
| Switching outputs | Speed and Position |
| Signal outputs / Interfaces | Basic unit: › Current output 4–20 mA (without SIL) › Incremental output 1024 / 4096 pulses configurable (without SIL) › Status output and error output Module UOC 40 (without SIL): › PROFIBUS-DP (without SIL): Resolution 12 bit Singleturn / 12 bit Multiturn Module USC 42 (SIL 2 / PL d): › PROFIsafe via PROFIBUS-DP (SIL 2 / PL d): Resolution 13 bit Singleturn / 15 bit Multiturn (PROFIBUS-DP: RS485, Baud rate 9.6 kbit/s–12 Mbit/s, Device address 1–99 adjustable) › PROFIsafe via PROFINET IO (SIL 2 / PL d) (PROFINET IO: Transmission rate 100 Mbit/s) |
| Maximum Speed / Frequency | 2800 rpm |
| Electrical connection | › Base module: Terminal box (copper cable) + USB interface › Switching module: Terminal box (copper cable) › Termination module: Fieldbus box |

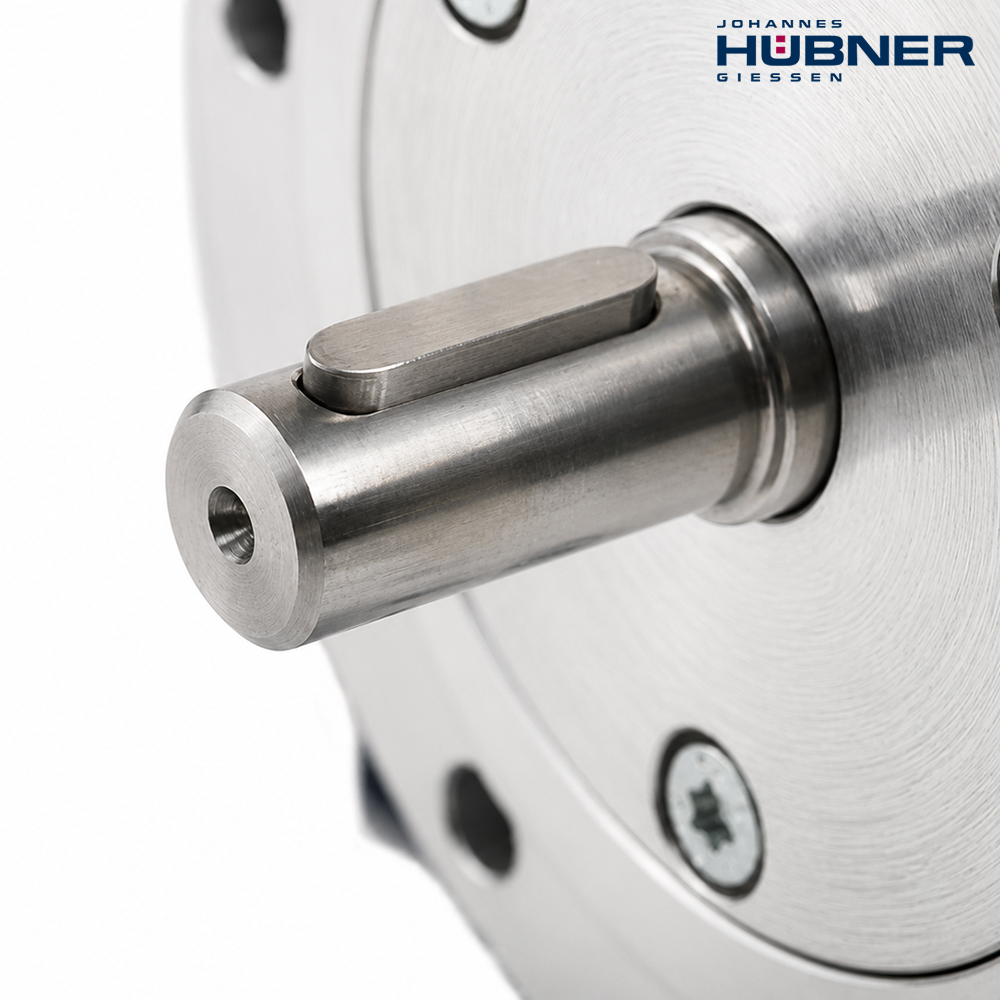

| Type of construction | Solid shaft (B5, B35): Ø 14 mm with feather key |
| Device temperature range | -25 °C to +70 °C |
| Degree of protection | IP66 |
| Weight | approx. 3.6 kg + 0.8 kg/module |
| Device options / Function | Modularly extendable (compact combination of different electronic function modules) |
| Mechanical options | › Additional foot (solid shaft construction type) › MI: Saliferous environment |
| Certificates / Approvals | › Safety certified: SIL 2 / PL d for USC 42 › UL/CSA |
